Arched

Arched

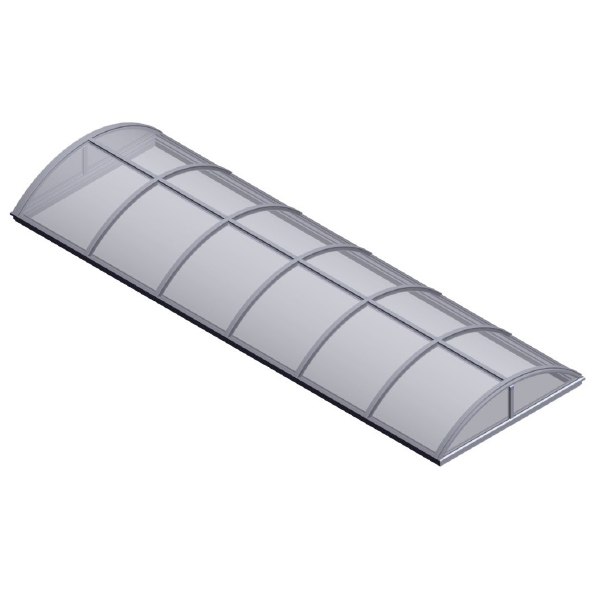

Our Arched system creates a curved element for your ceiling design, providing a long, continuous daylighting source. The system’s curb-mount design enables unlimited applications for flat roofs, using site-built curbs. The Arched System features a fully-assembled frame double-glazed with durable, high molecular weight acrylic.

Get a Quote
  • Glazes and Finishes
  • Standard Sizes

Finish Colors

Mill finish aluminum is standard on all Architectural Series models. We also offer anodized and high-performance designer color finishes.

Finish Color Options

Glazing Options

Outer glazing options include clear or bronze. Inner glazing options are clear or white.



Model
O.D. Curb Dimensions
Rib Spacing
Dome Rise
DDTBVV36144
3’3” X 12’0”
4’0”
10 1/4”
DDTBVV36192
3’3” X 16’0”
4’0”
10 1/4”
DDTBVV42144
3’9” X 12’0”
4’0”
11 3/4”
DDTBVV42192
3’9” X 16’0”
4’0”
11 3/4”
DDTBVV48144
4’3” X 12’0”
4’0”
13 1/4”
DDTBVV48192
4’3” X 16’0”
4’0”
13 1/4”
DDTBVV54144
4’9” X 12’0”
4’0”
14 3/4”
DDTBVV54192
4’9” X 16’0”
4’0”
14 3/4”

Dimensions are based on a site-built curb of 3-1/2″ and 7/8″ gap between the outside of the curb and the counter flashing leg of the skylight frame.
