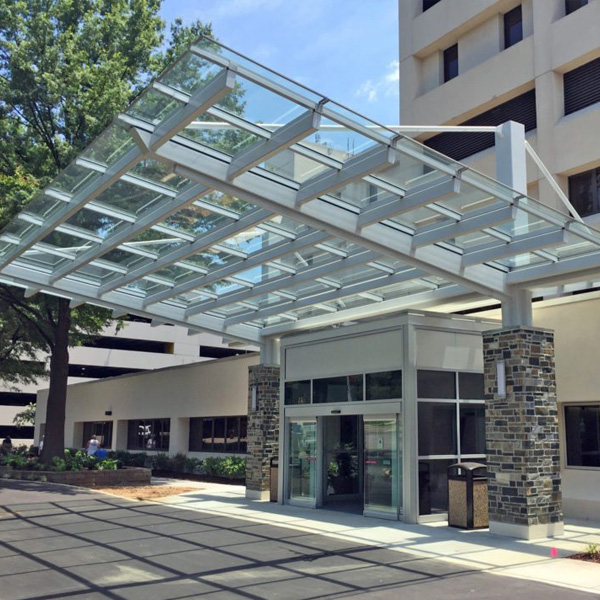

Horizon M-Series Canopy System

Monolithic polycarbonate canopy system

Features:

  • Monolithic polycarbonate panel thickness of 3/8″
  • Up to 250 times impact strength of glass
  • Extruded aluminum edge guard at ends and sides as needed
  • Multiple structural options for design flexibility
  • Custom panel shapes available
  • Standard colors clear and white, other colors available
  • Architectural paint and anodized finishes available
  • Custom engineered for limitless design options

Design:

  • Rafter spacing up to 2′ on center
  • Up to 20′ continuous length without purlins
  • Minimum slope of 1/2″ in 12: Up to 3″ side edge overhang
  • Support structure by others
  • Consult sales representative for other span or framing requirements
Find a Sales Rep
  • Details
  • Finish Colors

Product Sheet Download PDF

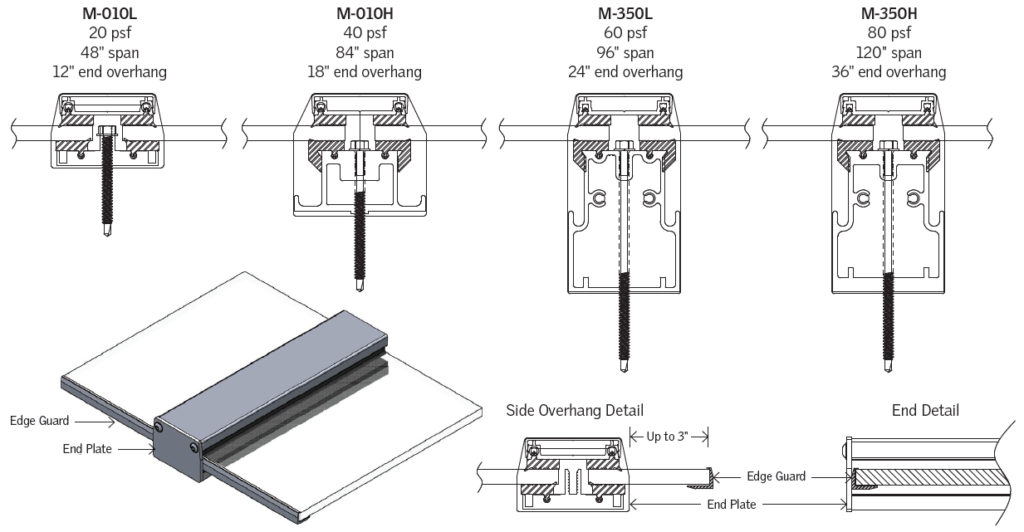

M-Series monolithic polycarbonate canopy system details

FINISH COLORS

VELUX Commercial systems are available in a broad range of colors and finishes:

  • Mill (Standard)
  • 2605 FEVE Powder Coat, 2605 PVDF, 2604 Powder Coat, and Anodized (more information)
  • Copper Clad
