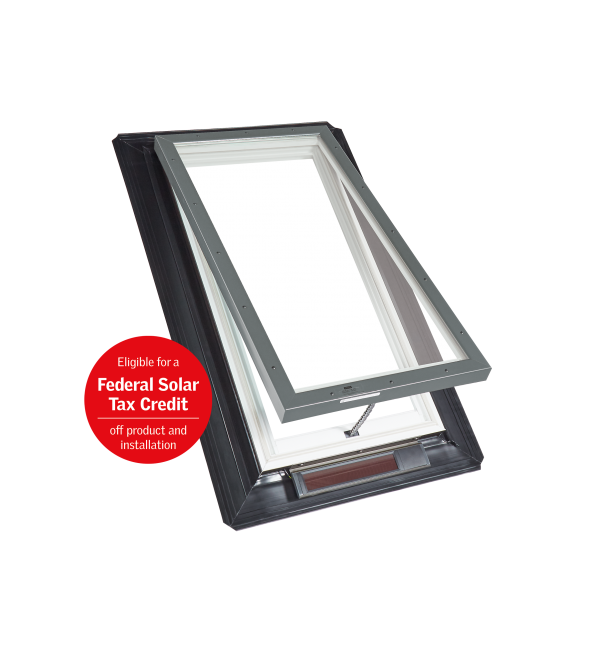

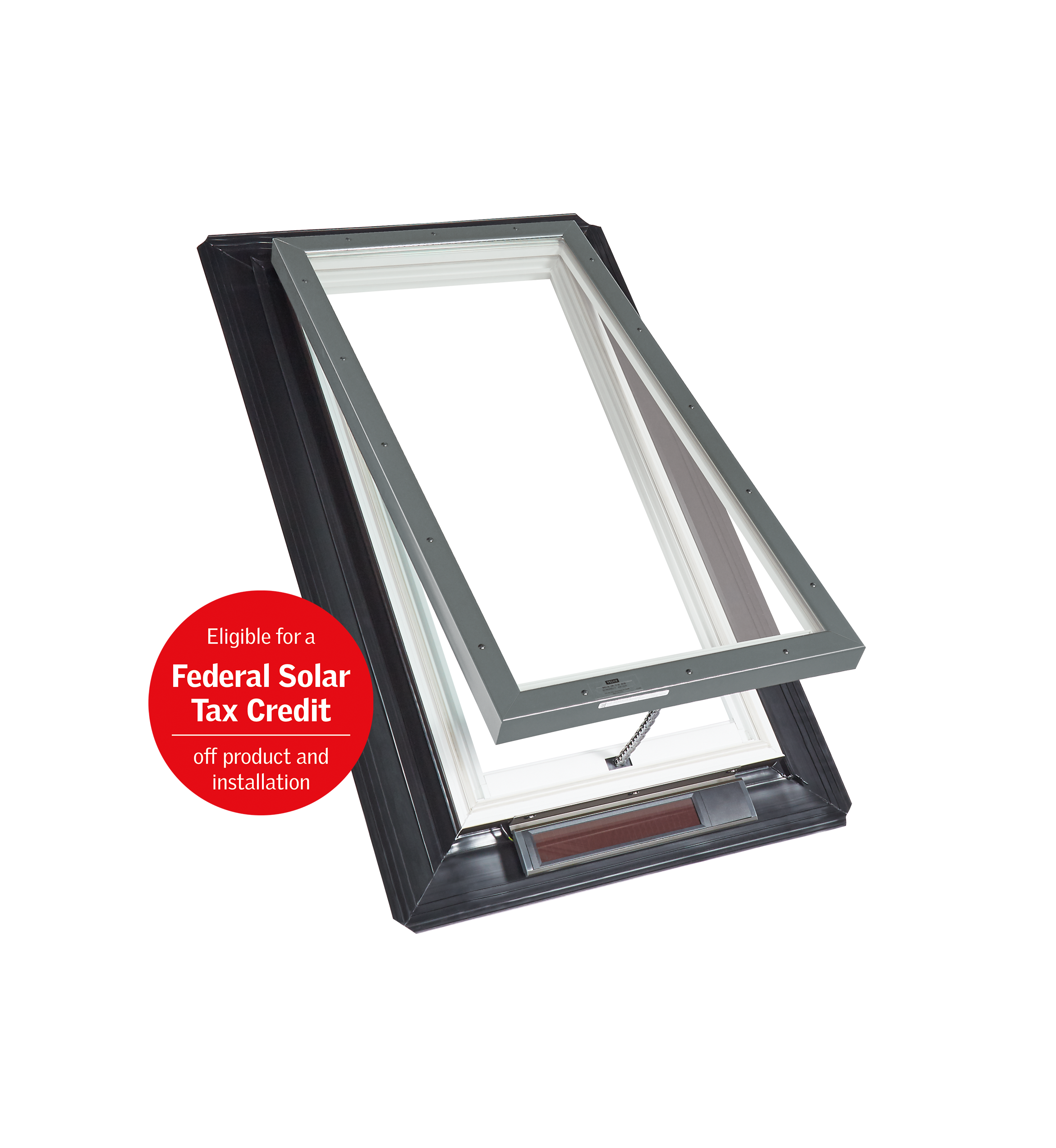

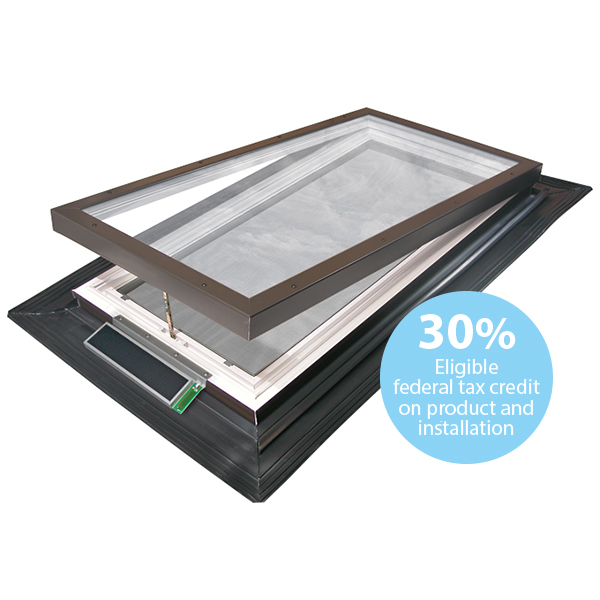

Solar Powered Motorized Venting Skylight

Ultraseal™ Solar Powered Motorized Venting (EVMS)

Remote Operated • Battery Powered • Solar Charged

  • No Wiring Needed – Powered by a factory installed solar charged battery pack
  • No Assembly Required – Simply lift the unit out of the box and fasten to the roof deck
  • Energy Efficient – Condensation control without weep holes for maximum energy efficiency
  • Wireless Remote – A wireless RF hand-held remote gives you full control of all skylight functions for up to 81 units
  • Rain Sensor – Automatically closes the skylight in damp weather
  • 30% Federal Tax Credit on both the purchase and installation of this solar powered model!

Wasco’s E-Class® installs in 1/3 the time* and delivers up to 46% more daylight!**

Our motorized vented E-Class model (EVMS) is ready to go right out of the box – no mastic, no step-flashing, no sealants. Our one-piece curbframe and flashing design cuts 90 minute installation to 30 minutes!* Plus, Wasco E–Class skylights deliver up to 46% more daylight!** Our E–Class self-flashing skylights sit directly on the roof deck, giving you a larger glass area per rough opening compared to competitor. Backed by a 10 Year Leak Free Warranty.

The EVMS model is available in standard and custom sizes, with a wide range of accessories, glazings and finish color options.

Wasco’s E-Class skylights feature condensation control without the use of weep holes for maximum energy efficiency. Wasco’s thermally broken vinyl curb frame incorporates a large condensation that channel collects condensation until it can naturally evaporate, eliminating the need for drainage weep holes that allow outside air to pass through the curb, diminishing the energy efficiency of the skylight.

Wasco E-Class self-flashing skylights are for use with thin roofing materials such as composition, slate or wood shingles and shakes up to 3/4″ thick. All E-Class models require a minimum 3:12 roof pitch. A Metal Roof Adapter is available for low profile 1″ standing seam metal roofs with a minimum 4:12 pitch. Standard size models fit 16″ and 24″ on-center roof rafters.

* Compared to the leading competitor.  ** Venting models.

Find a Dealer
  • 30% Federal Tax Credit
  • Videos
  • Glazes and Finishes
  • Performance Data
  • Standard Sizes

Guide to Receive Your Federal Tax Credit

Background

Solar Powered Motorized Venting SkylightUnder two laws – the Emergency Stabilization Act of 2008 and American Recovery and Reinvestment Act of 2009 (ARRA) – Wasco Solar Powered Model EVMS qualify under “Solar Electric Property” expenditures when purchased and installed from January 1, 2009 through December 31, 2019 (26% in 2020, 22% in 2021). This tax credit is a direct debit of the taxpayers total tax liability. The combined effect of these two laws provides a 30% Tax Credit on both the purchase and installation of qualifying products in renewable technologies such as; Solar Electric Property, Residential Solar Water Heating, Qualified small wind energy and qualified Geothermal Heat pump energy as well as others.



What You Should Do

After Installation

  • Keep your receipts for total price paid (invoice from contractor for product and installation) of the qualifying Wasco products.
  • Attach receipts to a completed Manufacturers Certification Statement1 and keep for your records (Download Statement).

When Filing Your Taxes

  • Fill out the IRS Residential Energy Efficient Property Credit tax form 5695 (under “Qualified solar electric property cost”)
  • Submit it with your taxes. Enter this tax credit off of form 5695 on your IRS tax form 10402 (tax forms can be found at www.irs.gov).

1 IRS Notice 2009-41 suggests the taxpayer is not required to attach this certification statement to their tax return. However, the taxpayer should retain this certification statement as part of their tax records.
2 As in all tax matters, the taxpayer is advised to consult their tax professional. Wasco Products, Inc. assumes no liability regarding the homeowner’s ability to obtain tax credits.

Finish Colors

The standard baked enamel finish for all E-Class® Skylights is Quaker Bronze. Nine additional designer colors are available. Colors are shown below, approximated by computer display colors. Copper cladding is available on some units.

finish-colors

Glazing Options

eMAX3 Triple Silver Coated Glazing
Wasco’s standard glazing. eMAX3 is an energy efficient tempered over tempered glazing which meets the version 6.0 Energy Star program for all climate zones. The eMAX3 Triple Silver Coated Series is a high performance Low-E insulated tempered glass with argon. Also available with tempered over laminated glass.

SageGlass®
SageGlass is advanced dynamic glass that is electronically tintable and provides a beautiful and cost-effective way to control sunlight without blinds or shades, so you can manage glare and heat while maintaining a view to the outdoors. SageGlass is also eligible for a 30% Federal Tax Credit, however the two eligible products cannot be filed as two tax credits – only one 30% tax credit for the total cost of the unit and installation.

Hurricane Resistant
Available in fixed model EFHR only. Wasco Skylights with hurricane-resistant glazing meet IBC/IRC/FBC and other stringent state building codes for skylights installed in Wind Zone 3 coastal applications. Hurricane resistant glass appears to be ordinary glass, but shields against damage from wind-borne debris, accidental impacts, forced entry and even unwanted noise.



Thermal performance factors per NFRC 100

VLT U-Factor SHGC
eMAX31 59% 0.48 0.25
eMAX3 Laminated1 58% 0.47 0.25
SageGlass®2: Clear 60% 0.28 0.41
Intermediate State 2 18% 0.28 0.15
Intermediate State 1 6% 0.28 0.10
Fully Tinted 1% 0.28 0.09

1Total Unit.  2Center of Glazing.

Explanation of Terms:

VLT (Visible Light): Radiant energy from 380nm – 780nm wavelengths. (% Transmittance): percentage of visible light directly transmitted through glass.

U-Factor: Air-to-air thermal conductance of glass and associated air/gas layers; units are Btu/hr.ft2 deg F.

SHGC (Solar Heat Gain Coefficient): Fraction of solar energy transferred indoors both directly (radiation) and indirectly (convection/absorption/re-radiation) through the glass (for reference, 1/8″ clear glass has a SHGC of 0.86).

EVMS2222 EVMS2230 EVMS2238 EVMS2246 EVMS2254 EVMS3030 EVMS3046 EVMS3054 EVMS4646
Rough Opening 22.5″ X 22.5″ 22.5″ X 30.5″ 22.5″ X 38.5″ 22.5″ X 46.5″ 22.5″ X 54.5″ 30.5″ X 30.5″ 30.5″ X 46.5″ 30.5″ X 54.5″ 46.5″ X 46.5″
Daylight Area 20.625″ X 20.625″ 20.625″ X 28.625″ 20.625″ 36.625″ 20.625″ X 44.625″ 20.625″ X 52.625″ 28.625″ X 28.625″ 28.625″ X 44.625″ 28.625″ X 52.625″ 44.625″ X 44.625″
Daylight Opening
(Square Feet)
2.95 4.1 5.25 6.39 7.54 5.69 8.87 10.46 13.83

Custom-sized E-Class self-flashing skylights are also available. Contact your local residential dealer or call 800-388-0293. SageGlass® glazing offered in select standard sizes only, no custom sizes available.

NOTE: For all rectangular units, specify dimension parallel to roof ridge first (width).
