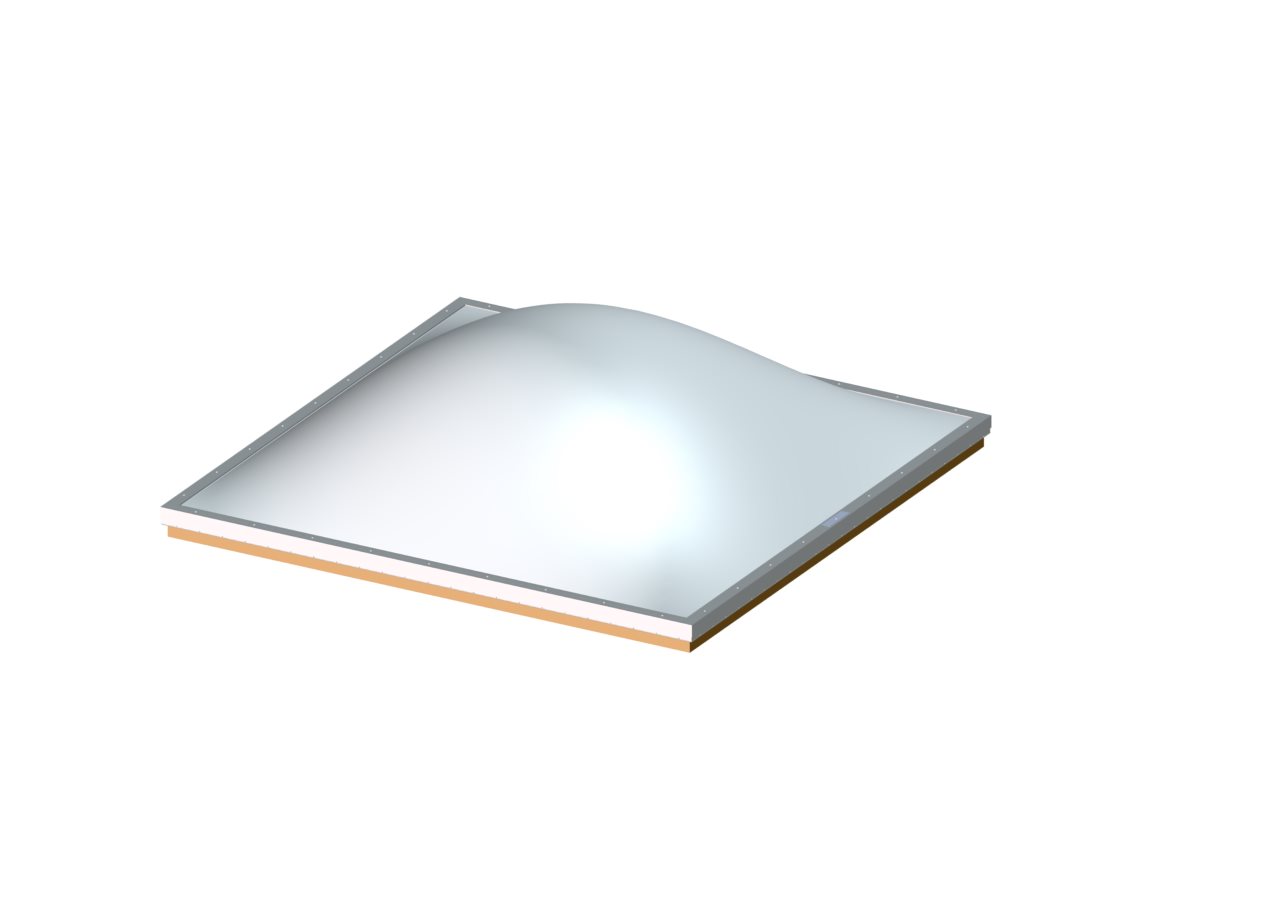

Domed Unit – Venting

Get the same high quality acrylic domed units in an innovative venting model, available in both dome and pyramid styles. Domes are available in double dome thermoformed acrylic glazing.

  • Manual, Electric, and Solar Powered options
  • For use on 1½” thick site-built or prefabricated curbs
  • Heat welded one-piece curb frame construction: sloped and chambered extruded PVC curb frame with integral condensation gutter and counterflashing downward leg
  • Aluminum retainer frame finish: Mill (standard), anodized, Kynar 500, baked enamel (more information)
  • Safety screens available
  • Standard Sizes
  • Glazes and Finishes
  • Options
  • Safety Considerations
  • CWVS – Solar Powered Venting, Double Dome, Curb Mount
  • CPVS – Solar Powered Venting, Double Dome, Pyramid Outer, Curb Mount
  • CWVM – Manual or Electric Venting, Double Dome, Curb Mount
  • CPVM – Manual or Electric Venting, Double Dome, Pyramid Outer, Curb Mount



Model Curb Mount O.D. of Curb
2828 25 ¼” x 25 ¼”
2852 25 ¼” x 49 ¼”
3636 33 ¼” x 33 ¼”
3652 33 ¼” x 49 ¼”
4242 40″ x 40″
5236 49 ¼” x 33 ¼”
5252 49 ¼” x 49 ¼”

Custom sizes are available.

Note: First dimension is the hinge side (*2852 is hinged on the 28 side).

Finish Colors

Frame finish is PVC, white interior and bronze exterior. Aluminum retainer frame.

Retainer Finish:

  • Mill (Standard)
  • Anodized, Kynar 500, Baked Enamel (more information)
  • Copper Clad

Glazing Options

Outer:

  • Clear
  • #2412 Bronze
  • #2447 White

Inner:

  • Clear
  • #2447 White
  • SatinIce

solar powered venting

Remote operated • Battery powered • Solar charged

  • No Wiring Needed – Powered by a factory installed solar charged battery pack
  • Wireless Remote – A wireless RF hand-held remote gives you full control of all skylight functions for up to 81 units
  • Rain Sensor – Automatically closes the skylight in damp weather



Manual & Electric Venting

Manual Venting Option:

Pole Eye and Pole – Replaces the standard crank handle to allow use of the Skylight Pole.

Electric Venting Option:

LWS Motor Kit – A motorized retrofit to existing manually vented skylights. To motorize manually vented models, retrofit the hand crank casing with a WLS Motor Kit. Includes electric motor, rain sensor and wall mounted control unit. The WLS is a hard-wired electric motor with wall switch control. Installation by a certified electrician is recommended. Each motorized window must have its own control unit. LWS Motor and Switch cannot be ordered separately. Optional wireless LWS remote controls are available, purchased separately.

LWS Remote Control – Optional replacement of wall mounted switch. For use with LWS Motorization Kit, RF (radio frequency) hand-held remote can control multiple venting skylights. Nine zones or “unit codes” are available to allow units to be controlled in groups and organized to your needs.

Safety Considerations

Skylights pose an inherent risk of injury or death from fall throughs, and the safety of others is of the utmost importance to VELUX.  VELUX recommends that the customer, building owner or manager use additional protection with the skylight such as an exterior or interior safety cage, to enhance long-term safety.  The building owner or manager is responsible for providing fall protection around the skylight in accordance with OSHA regulations.  VELUX also recommends that the building owner or manager restrict roof access only to personnel who have been cautioned as to the location of the skylights, and warned not to sit, step or walk on the skylights.
