Thermalized Acrylic Domed Units

Wasco curb-mount or deck-mount Thermalized® Solar-Energy Skydomes® offer outstanding lighting and thermal performance in a versatile range of dome or pyramid styles. These energy saving sky windows offer the highest performance plastic glazed fixed unit skylight.

  • Curb mount for use on 1½” thick site-built or prefabricated curbs
  • Deck-mount models with 1½” rigid insulation in 12″ or 16″ curb heights
  • Available in standard and custom sizes, domed or pyramid shapes
  • Safety screens recommended

Download BIM Models for Revit®

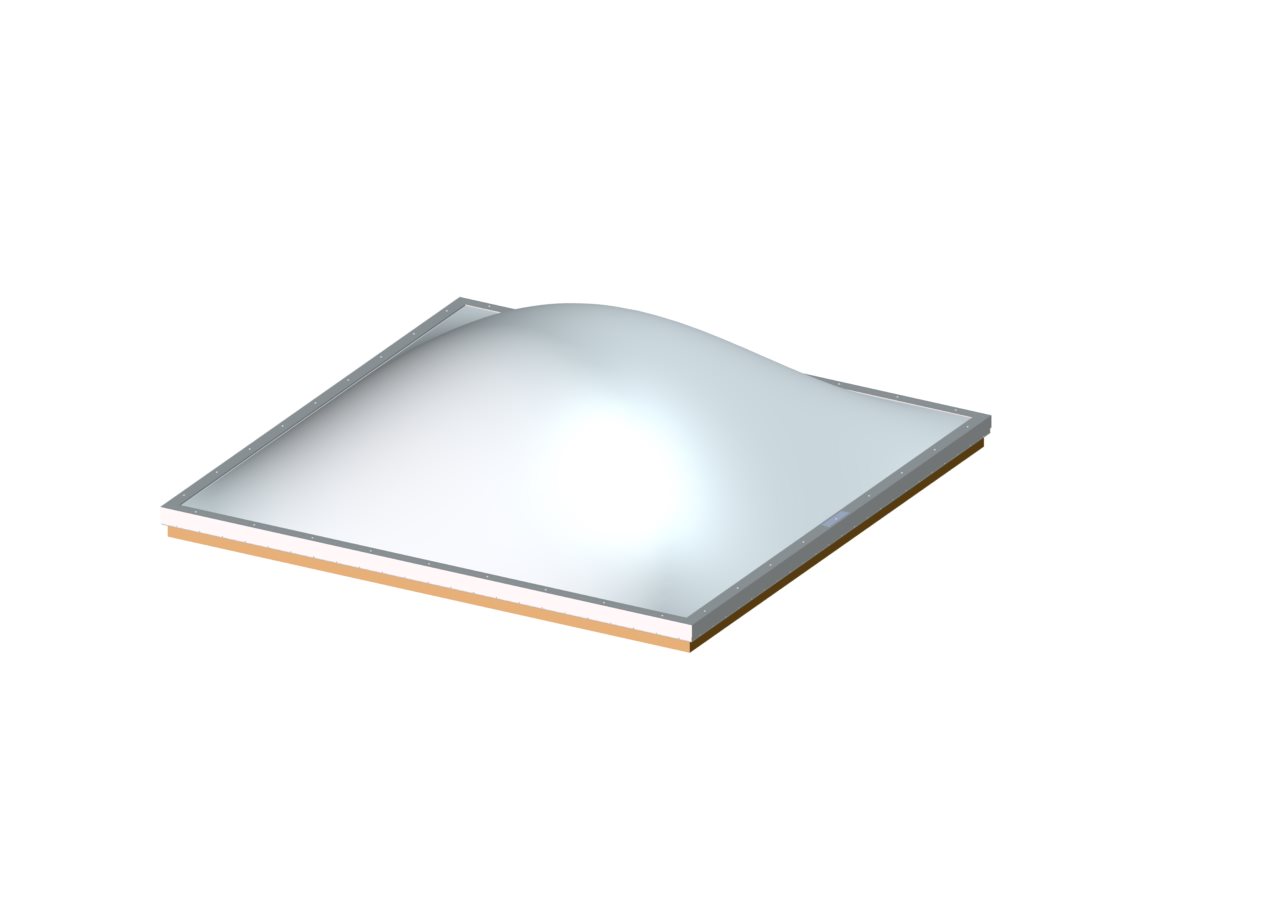

Curb Mount (SS2):

Deck Mount (SA2):



  • Curb Mount (SS2)
  • Deck Mount (SA2)
  • Standard Sizes
  • Glazing Options
  • Safety Considerations

Curb Mount Product Information Download PDF

  • Models: double dome (DDSS2) or triple dome (DDDSS2)
  • For use on 1½” thick site-built or prefabricated curbs
  • No exposed fasteners
  • Glazing is thermoformed cast acrylic over impact modified acrylic double or triple domes
  • Fully assembled with extruded aluminum retainer frame welded at corners and high performance weather seals
  • Heat welded one-piece curb frame construction: chambered extruded PVC curb frame with integral condensation gutter and counterflashing downward leg
  • Aluminum retainer frame finish: Mill (standard), anodized, kynar 500, baked enamel (more information)



Sentinel curb mount skylight DDSS2 features

Deck Mount Product Information Download PDF

  • Models: double dome (DDSA2) or triple dome (DDDSA2)
  • Curb heights available in 12″ or 16″
  • Glazing is thermoformed cast acrylic over impact modified acrylic double or triple domes
  • Heat welded one-piece curb frame construction: sloped and chambered extruded PVC curb frame with integral condensation gutter and counterflashing downward leg
  • Aluminum curb with 1½” rigid insulation – mill finish outer, white inner, with HS adhesive clamping at corners
  • Fully assembled with corrosion proof screws and high performance weather seals
  • Also available with Lumira® aerogel filled multiwall polycarbonate panels (DDSA2NT)
  • Aluminum retainer frame finish: Mill (standard), anodized, kynar 500, baked enamel (more information)





Sentinel deck mount skylight DDSA2 features

Model Curb Mount (SS2)
O.D. of Curb
Deck Mount (SA2)
Rough Opening
SS2/SA2–2828 25 ¼” x 25 ¼” 22 ¼” x 22 ¼”
SS2/SA2–2852 25 ¼” x 49 ¼” 22 ¼” x 46 ¼”
SS2/SA2–3636 33 ¼” x 33 ¼” 30 ¼” x 30 ¼”
SS2/SA2–3652 33 ¼” x 49 ¼” 30 ¼” x 46 ¼”
SS2/SA2–4242 40″ x 40″ 37″ x 37″
SS2/SA2–5252 49 ¼” x 49 ¼” 46 ¼” x 46 ¼”
SS2/SA2–5276 49 ¼” x 72 ½” 46 ¼” x 69 ½”
SS2/SA2–5296 49 ¼” x 92 ½” 46 ¼” x 89 ½”
SS2/SA2–5555 51″ x 51″ 48″ x 48″
SS2/SA2–55102 51″ x 99″ 48″ x 96″
SS2/SA2–6060 58″ x 58″ 55″ x 55″
SS2/SA2–6476 60 ½” x 72 ½” 60″ x 60″
SS2/SA2–6496 60 ½” x 92 ½” 60″ x 96″
SS2/SA2–6666 63″ x 63″ 57 ½” x 69 ½”
SS2/SA2–66102 63″ x 99″ 57 ½” x 89 ½”
SS2/SA2–7272 71″ x 71″ 68″ x 68″
SS2/SA2–8080 78″ x 78″ 75″ x 75″
SS2/SA2–9898 95 ½” x 95 ½” 92 ½” x 92 ½”

Custom Sizes Available



Glazing is thermoformed cast acrylic* over extruded impact modified acrylic.

Double Dome:

  • Outer: Clear, White, or Bronze (available in domed or pyramid shapes)
  • Inner: Clear or White
  • Curb mount model available with optional Lumira® aerogel filled multiwall polycarbonate panel

Triple Dome:

  • Outer: Clear, White, or Bronze. For Satin Sky 2 outer, see EcoSky Series.
  • Middle: Clear or White
  • Inner: Clear or White



fall safetySAFETY CONSIDERATIONS:

Skylights pose an inherent risk of injury or death from fall throughs, and the safety of others is of the utmost importance to VELUX.  VELUX recommends that the customer, building owner or manager use additional protection with the skylight such as an exterior or interior safety cage, to enhance long-term safety.  The building owner or manager is responsible for providing fall protection around the skylight in accordance with OSHA regulations.  VELUX also recommends that the building owner or manager restrict roof access only to personnel who have been cautioned as to the location of the skylights, and warned not to sit, step or walk on the skylights.
