Domed Unit – Fixed

Wasco curb mount or deck mount traditional domed units offer outstanding lighting and thermal performance in a versatile range of dome or pyramid styles. These energy saving sky windows offer the highest performance in a fixed unit plastic glazed skylight.

Fixed units are also available as Hurricane Rated.



Revit Icon Download BIM Models for Revit®
Standard Dome RFA   |   Pyramid Dome RFA   |   View on BIMobject



  • Curb Mount & Deck Mount
  • Double Dome
  • Triple Dome
  • Single Dome with Aerogel Filled Laylite
  • Safety Considerations

Curb Mount:

  • For use on 1½” thick site-built or prefabricated curbs
  • No exposed fasteners
  • Fully assembled with extruded aluminum retainer frame welded at corners and high performance weather seals
  • Heat welded one-piece curb frame construction: chambered extruded PVC curb frame with integral condensation gutter and counterflashing downward leg
  • Aluminum retainer frame finish: Mill (standard), anodized, Kynar 500, baked enamel (more information)
  • Safety screens available

Deck Mount:

  • Curb heights available in 12″ or 16″
  • Heat welded one-piece curb frame construction: sloped and chambered extruded PVC curb frame with integral condensation gutter and counterflashing downward leg
  • Aluminum curb with 1½” rigid insulation – mill finish outer, white inner, with HS adhesive clamping at corners
  • Fully assembled with corrosion proof screws and high performance weather seals
  • Aluminum retainer frame finish: Mill (standard), anodized, Kynar 500, baked enamel (more information)
  • Safety screens available

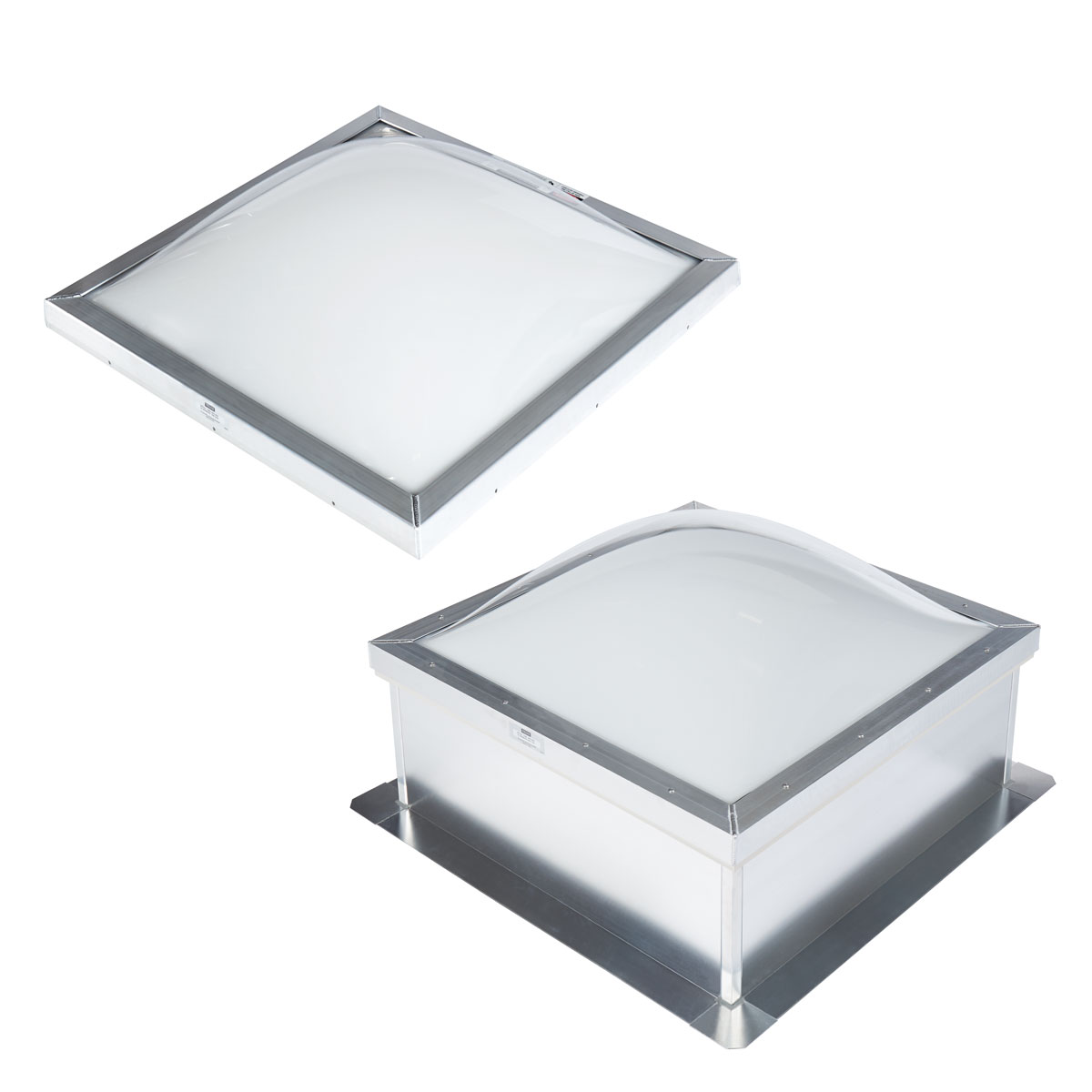

Double domed available in:

  • CWC2 – Curb Mount
  • CPC2 – Pyramid Outer, Curb Mount
  • CWD2 – Deck Mount
  • CPD2 – Pyramid Outer, Deck Mount
  • Standard and custom sizes
  • Glazing and retainer finish options
  • Safety screens available

Standard Sizes

Model Curb Mount O.D. of Curb Deck Mount Rough Opening
2828 25 ¼” x 25 ¼” 22 ¼” x 22 ¼”
2836 25 ¼” x 33 ¼” 22 ¼” x 30 ¼”
2852 25 ¼” x 49 ¼” 22 ¼” x 46 ¼”
3636 33 ¼” x 33 ¼” 30 ¼” x 30 ¼”
3652 33 ¼” x 49 ¼” 30 ¼” x 46 ¼”
3676 33 ¼” x 72 ½” 30 ¼” x 69 ½”
4242 40″ x 40″ 37″ x 37″
4280 40″ x 78″ 37″ x 75″
5252 49 ¼” x 49 ¼” 46 ¼” x 46 ¼”
5276 49 ¼” x 72 ½” 46 ¼” x 69 ½”
5296 49 ¼” x 92 ½” 46 ¼” x 89 ½”
6060 58″ x 58″ 55″ x 55″
6476 60 ½” x 72 ½” 57 ½” x 69 ½”
6496 60 ½” x 92 ½” 57 ½” x 89 ½”
7272 71″ x 71″ 68″ x 68″
8080 78″ x 78″ 75″ x 75″
9898 95 ½” x 95 ½” 92 ½” x 92 ½”

Glazing Options

Outer:

  • Clear
  • #2412 Bronze
  • #2447 White

Inner:

  • Clear
  • #2447 White
  • SatinIce



Finish Options

Frame finish is PVC, white interior and bronze exterior. Aluminum retainer frame.

Retainer Finish:

  • Mill (Standard)
  • Anodized, Kynar 500, Baked Enamel (more information)
  • Copper Clad

Triple domed available in:

  • CWC3 – Curb Mount
  • CWD3 – Deck Mount
  • Standard and custom sizes
  • Glazing and retainer finish options
  • Safety screens available

Standard Sizes

Model Curb Mount O.D. of Curb Deck Mount Rough Opening
2828 25 ¼” x 25 ¼” 22 ¼” x 22 ¼”
2852 25 ¼” x 49 ¼” 22 ¼” x 46 ¼”
3636 33 ¼” x 33 ¼” 30 ¼” x 30 ¼”
3652 33 ¼” x 49 ¼” 30 ¼” x 46 ¼”
4242 40″ x 40″ 37″ x 37″
5252 49 ¼” x 49 ¼” 46 ¼” x 46 ¼”
5276 49 ¼” x 72 ½” 46 ¼” x 69 ½”
5296 49 ¼” x 92 ½” 46 ¼” x 89 ½”
5555 51″ x 51″ 48″ x 48″
55102 51″ x 99″ 48″ x 96″
6060 58″ x 58″ 55″ x 55″
6476 60 ½” x 72 ½” 57 ½” x 69 ½”
6496 60 ½” x 92 ½” 57 ½” x 89 ½”
6666 63″ x 63″ 60″ x 60″
66102 63″ x 99″ 60″ x 96″
7272 71″ x 71″ 68″ x 68″
8080 78″ x 78″ 75″ x 75″
9898 95 ½” x 95 ½” 92 ½” x 92 ½”

Glazing Options

Outer:

  • Clear
  • #2412 Bronze
  • #2447 White

Middle:

  • Clear
  • #2447 White

Inner:

  • Clear
  • #2447 White
  • SatinIce



Finish Options

Frame finish is PVC, white interior and bronze exterior. Aluminum retainer frame.

Retainer Finish:

  • Mill (Standard)
  • Anodized, Kynar 500, Baked Enamel (more information)
  • Copper Clad



Single dome over a clear multiwall polycarbonate laylite filled with Lumira® aerogel.

Available in:

  • CLD2 – Domed Outer, Deck Mount
  • CMD2 – Pyramid Outer, Deck Mount
  • 12″ or 16″ curb height
  • Standard and custom sizes
  • Glazing and retainer finish options
  • Safety screens available

Standard Sizes

Model Deck Mount Rough Opening
2424 19″ x 19″
2828 22 ¼” x 22 ¼”
2836 22 ¼” x 30 ¼”
2852 22 ¼” x 46 ¼”
3636 30 ¼” x 30 ¼”
3652 30 ¼” x 46 ¼”
3676 30 ¼” x 69 ½”
4242 37″ x 37″
4280 37″ x 75″
5252 46 ¼” x 46 ¼”
5276 46 ¼” x 69 ½”
5296 46 ¼” x 89 ½”
6060 55″ x 55″
6476 57 ½” x 69 ½”
6496 57 ½” x 89 ½”
7272 68″ x 68″
8080 75″ x 75″

Glazing Options

Outer:

  • Clear
  • #2412 Bronze

Inner:

  • 10mm laylite
  • 16mm laylite



Finish Options

Frame finish is PVC, white interior and bronze exterior. Aluminum retainer frame.

Retainer Finish:

  • Mill (Standard)
  • Anodized, Kynar 500, Baked Enamel (more information)
  • Copper Clad



Safety ConsiderationsSkylights pose an inherent risk of injury or death from fall throughs, and the safety of others is of the utmost importance to VELUX. VELUX recommends that the customer, building owner or manager use additional protection with the skylight such as an exterior or interior safety cage, to enhance long-term safety. The building owner or manager is responsible for providing fall protection around the skylight in accordance with OSHA regulations. VELUX also recommends that the building owner or manager restrict roof access only to personnel who have been cautioned as to the location of the skylights, and warned not to sit, step or walk on the skylights.
