Low Profile System

Low Profile System – Glass

Available with a wide choice of high performance glazing and finish options, Wasco’s low profile skylight structures offer virtually unlimited design possibilities for a fully customized configuration.

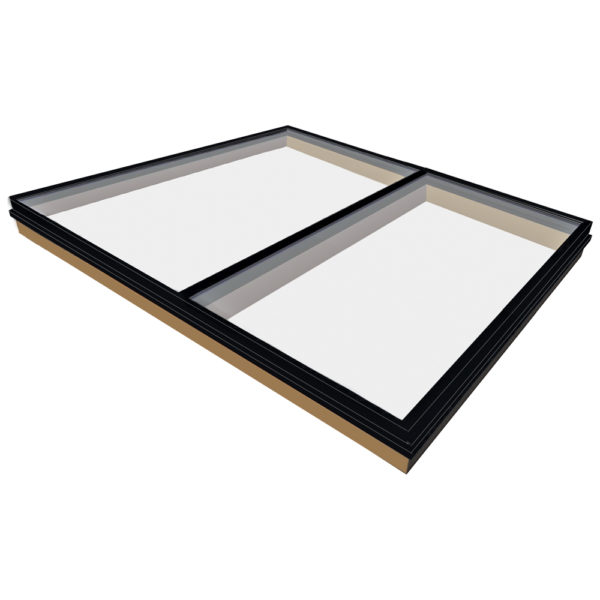

Developed for pitched roof applications, the Wasco Low Profile System is an aluminum-frame glass system that lays over roof rafters, creating a narrow line frame for a clean and appealing look on the roof line. Available in curb-mount (LPGS) or self-flashing deck-mount (LPG), the system accommodates multiple insulated glass panels. Thermally-broken aluminum frame ships assembled and ready for field glazing with 1-1/16” high performance low-E insulated glass for energy efficiency and solar control. Also available with WBDR impact rated glass (LPGSG-FBC) or any of our Dynamic Glazing Series options.



Revit Icon Download BIM Models for Revit®
Model LPGS
Revit Family RFA   |   Type Catalog TXT   |   View on BIMobject



Find a Sales Rep

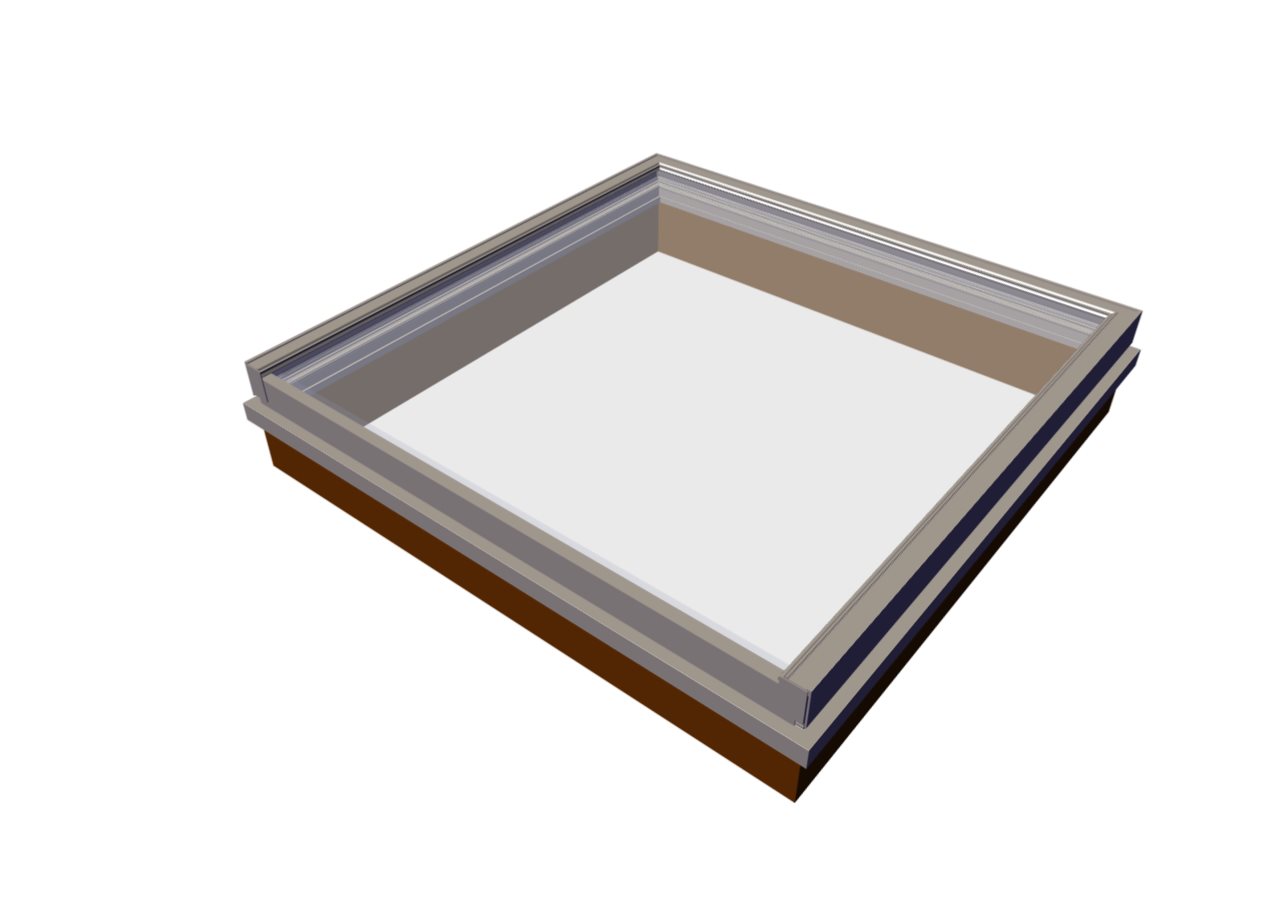

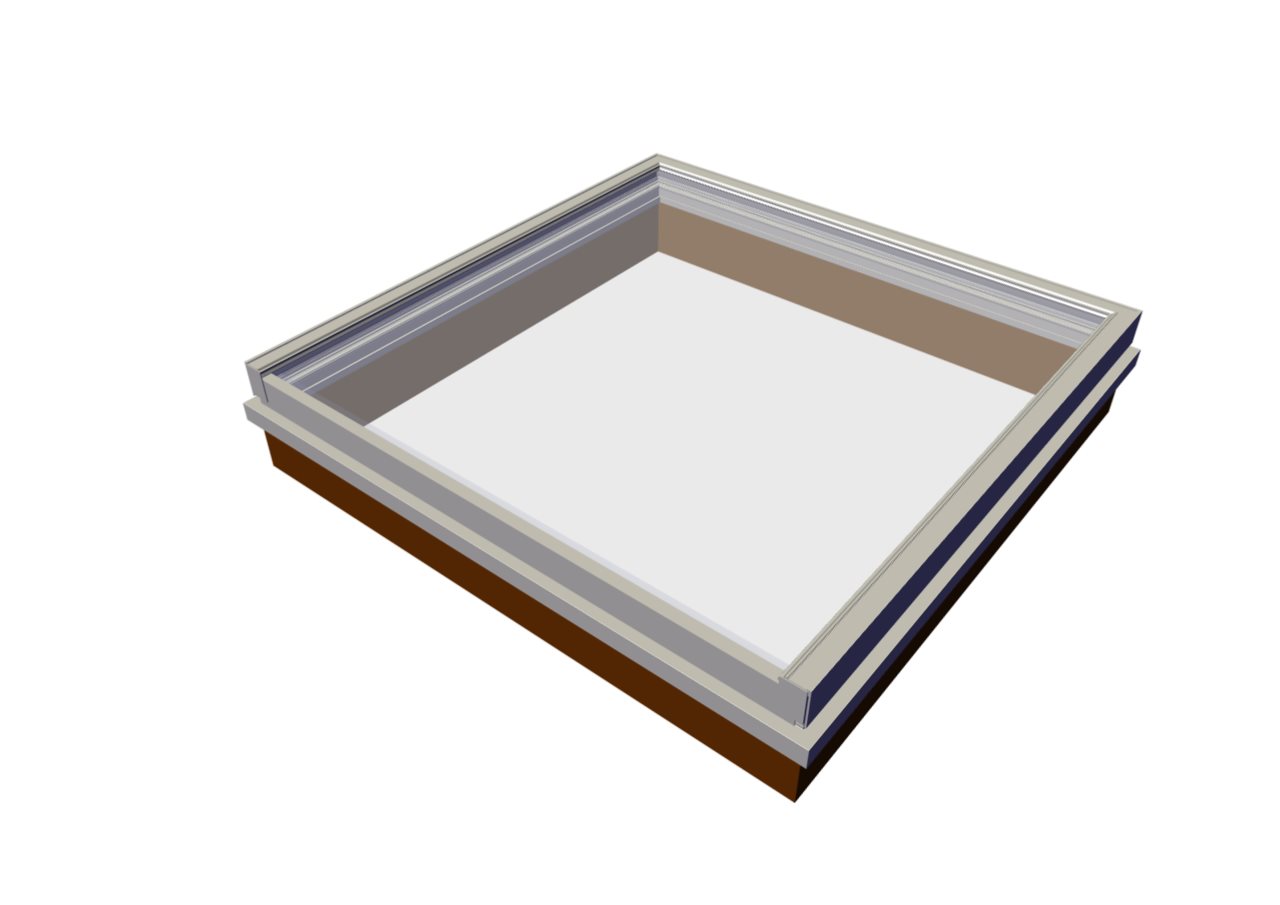

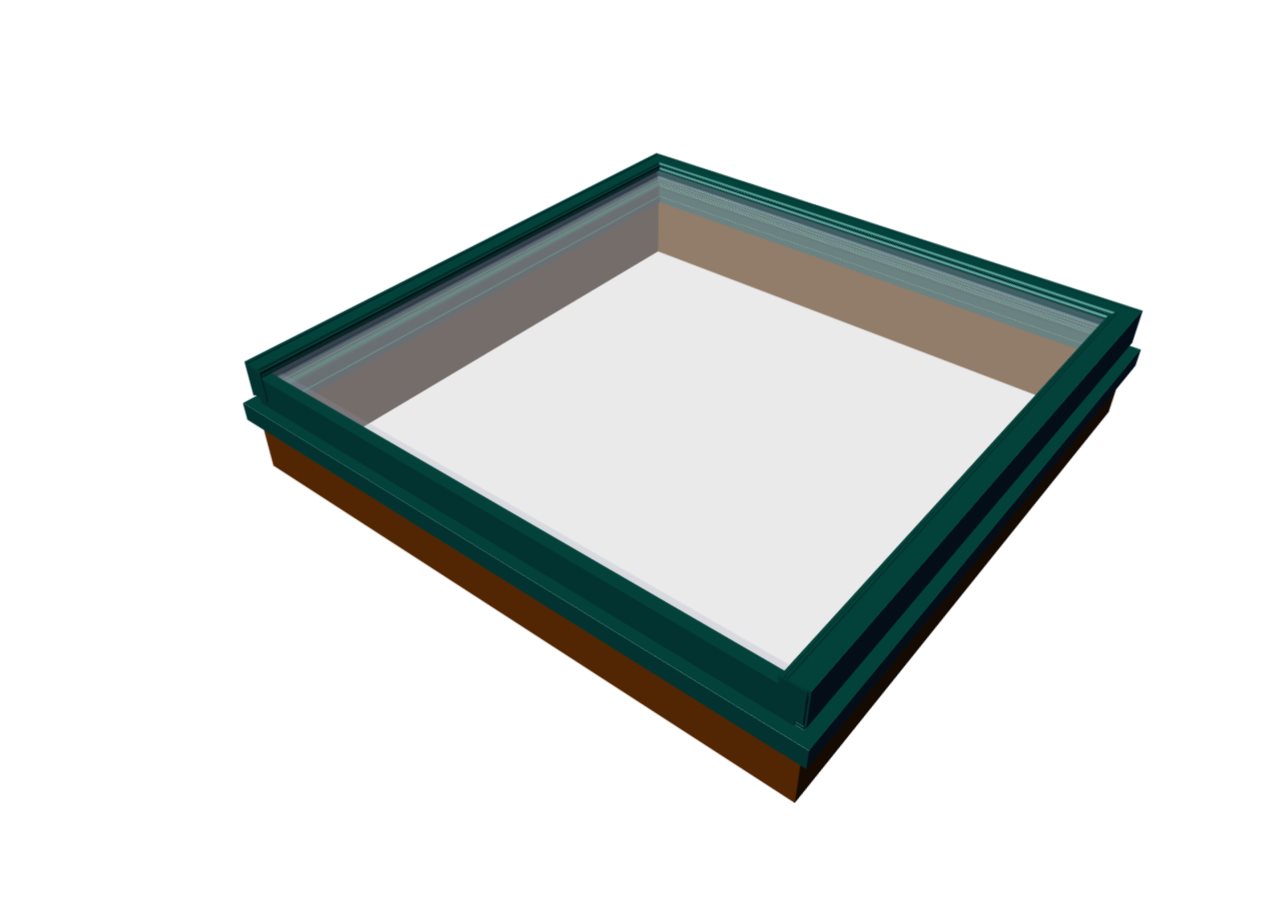

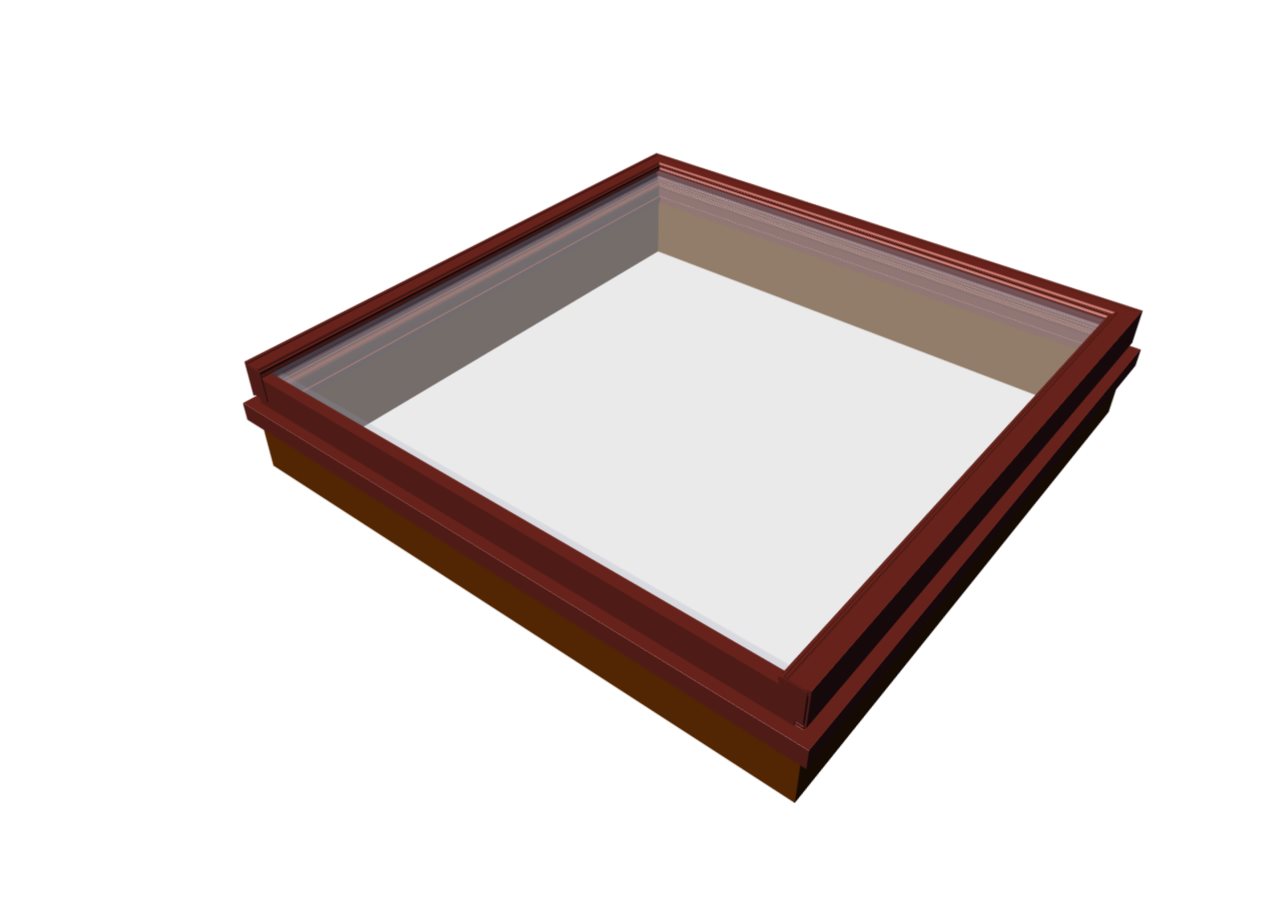

Finish Options

Click color swatches below to preview.
2605 FEVE Powder Coat, 2605 PVDF, and 2604 Powder Coat colors shown. Anodized colors also available.

aged copper color optionAged Copperquaker bronze color optionQuaker Bronzehartford green color optionHartford Greencolonial white color optionColonial Whitecolonial grey colorColonial Greybone white colorBone Whiteblack color swatchBlackaged copper color optionAged Copper
  • Standard Sizes
  • Glazes and Finishes

2′ 0″ Rafter Spacing

Model
Inside Rough Opening
Width*
Inside Rough Opening
Height*
O.D. Curb
Width*
O.D. Curb
Height*
  No. Glass Panels
LPGS/LPG-2448
1′ 10-1/2″
3′ 10-1/2″
2′ 1-1/2″
4′ 1-1/2″
1
LPGS/LPG-2472
1′ 10-1/2″
5′ 10-1/2″
2′ 1-1/2″
6′ 1-1/2″
1
LPGS/LPG-4848
3′ 10-1/2″
3′ 10-1/2″
4′ 1-1/2″
4′ 1-1/2″
2
LPGS/LPG-4872
3′ 10-1/2″
5′ 10-1/2″
4′ 1-1/2″
6′ 1-1/2″
2
LPGS/LPG-7248
5′ 10-1/2″
3′ 10-1/2″
6′ 1-1/2″
4′ 1-1/2″
3
LPGS/LPG-7272
5′ 10-1/2″
5′ 10-1/2″
6′ 1-1/2″
6′ 1-1/2″
3
LPGS/LPG-9648
7′ 10-1/2″
3′ 10-1/2″
8′ 1-1/2″
4′ 1-1/2″
4
LPGS/LPG-9672
7′ 10-1/2″
5′ 10-1/2″
8′ 1-1/2″
6′ 1-1/2″
4
LPGS/LPG-12048
9′ 10-1/2″
3′ 10-1/2″
10′ 1-1/2″
4′ 1-1/2″
5
LPGS/LPG-12072
9′ 10-1/2″
5′ 10-1/2″
10′ 1-1/2″
6′ 1-1/2″
5

1′ 4″ Rafter Spacing

Model
Inside Rough Opening
Width*
Inside Rough Opening
Height*
O.D. Curb
Width*
O.D. Curb
Height*
 No. Glass Panels
LPGS/LPG-3248
2′ 6-1/2″
3′ 10-1/2″
2′ 9-1/2″
4′ 1-1/2″
1
LPGS/LPG-3272
2′ 6-1/2″
5′ 10-1/2″
2′ 9-1/2″
6′ 1-1/2″
1
LPGS/LPG-6448
5′ 2-1/2″
3′ 10-1/2″
5′ 5-1/2″
4′ 1-1/2″
2
LPGS/LPG-6472
5′ 2-1/2″
5′ 10-1/2″
5′ 5-1/2″
6′ 1-1/2″
2
LPGS/LPG-9648
7′ 10-1/2″
3′ 10-1/2″
8′ 1-1/2″
4′ 1-1/2″
3
LPGS/LPG-9672
7′ 10-1/2″
5′ 10-1/2″
8′ 1-1/2″
6′ 1-1/2″
3
LPGS/LPG-12848
10′ 6-1/2″
3′ 10-1/2″
10′ 9-1/2″
4′ 1-1/2″
4
LPGS/LPG-12872
10′ 6-1/2″
5′ 10-1/2″
10′ 9-1/2″
6′ 1-1/2″
4

* Requires 3 on 12 minimum pitch.

LPGS = Curb Mount
LPG = Deck Mount

Glass Glazing Options

Typical glazing is insulated glass comprised of a tempered outboard lite and an annealed or heat strengthened laminated safety glass inboard lite.

  • Also available with Hurricane Rated or Translucent Polycarbonate glazing
  • Wasco’s Dynamic Glazing Series includes:
    • Electronically Tintable Glass
    • BIPV
    • Translucent Insulated Glass
    • Translucent Insulated Glass with Lumira® Aerogel

Finish Options

VELUX Commercial skylight structures are available in a broad range of colors and finishes:

  • Mill (Standard)
  • 2605 FEVE Powder Coat, 2605 PVDF, 2604 Powder Coat, and Anodized (more information)
  • Copper Clad
