Hurricane-Resistant Fixed Glass Skylight

Ultraseal™ Hurricane-Resistant Fixed Glass (EFHR)

Wasco Skylights with hurricane-resistant glazing meet FBC and other stringent state building codes for skylights installed in Wind Zone 3 coastal applications. Hurricane resistant glass appears to be ordinary glass, but shields against damage from wind-borne debris, accidental impacts, forced entry and even unwanted noise. Not available in venting models.

Wasco’s E-Class® installs in 1/3 the time and delivers up to 22% more daylight in fixed glass models!

Our hurricane resistant fixed E-Class model (EFHR) is ready to go right out of the box – no mastic, no step-flashing, no sealants. Our one-piece curbframe and flashing design cuts 90 minute installation to 30 minutes!* Plus, Wasco E–Class skylights deliver up to 22% more daylight!** Our E–Class self-flashing skylights sit directly on the roof deck, giving you a larger glass area per rough opening compared to competitor. Backed by a 10 Year Leak Free Warranty.

The EFHR model is available in standard and custom sizes, with a wide range of finish color options.

Wasco’s E-Class skylights feature condensation control without the use of weep holes for maximum energy efficiency. Wasco’s thermally broken vinyl curb frame incorporates a large condensation that channel collects condensation until it can naturally evaporate, eliminating the need for drainage weep holes that allow outside air to pass through the curb, diminishing the energy efficiency of the skylight.

Wasco E-Class self-flashing skylights are for use with thin roofing materials such as composition, slate or wood shingles and shakes up to 3/4″ thick. An adapter is available for metal roofs. All E-Class models require a minimum 3:12 roof pitch. Fits 16″ and 24″ on-center roof rafters.



* Compared to the leading competitor.  * Fixed models.

Get a Quote
  • Videos
  • Glazes and Finishes
  • Performance Data
  • Standard Sizes

Finish Colors

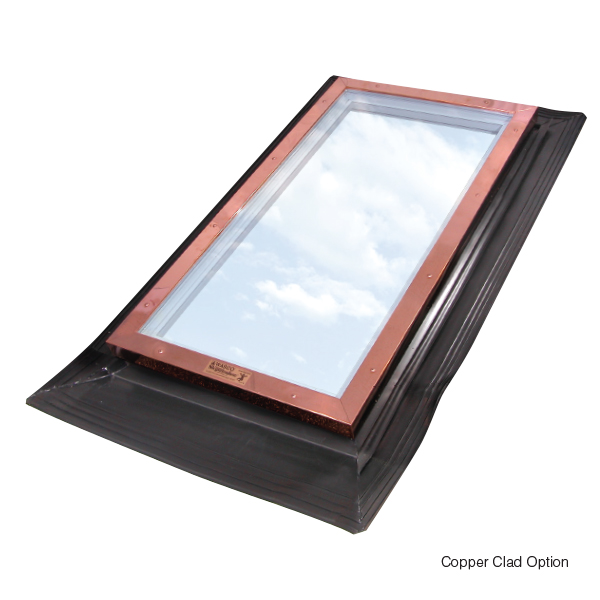

The standard baked enamel finish for all E-Class® Skylights is Quaker Bronze. Nine additional designer colors are available. Colors are shown below, approximated by computer display colors. Copper cladding is available on some units.

finish-colors

Glazing Options

Hurricane Resistant
Wasco Skylights with hurricane-resistant glazing meet Dade County, IBC/IRC/FBC and other stringent state building codes for skylights installed in Wind Zone 3 coastal applications.

Though it looks like ordinary glass, hurricane-resistant glass shields against damage from wind-borne debris, accidental impacts, forced entry, even unwanted noise. It’s made of heat strengthened low-E lites permanently bonded with one or more interlayers of durable SGP (DuPont SentryGlas® Plus). In exhaustive impact tests, broken glass fragments have adhered to the bonded plastic vinyl interlayer, reducing the risk of injury, shattered glass and breaching the building envelope.

Download Test Reports

EF 1600_I.S.7-2000PDF
EF 1701.2-85PDF
EFHR 1886-97 & 1996-02PDF
EFHR DADEPDF
EFHR1430EFHR1446EFHR2222EFHR2230EFHR2238EFHR2246EFHR3030EFHR3046EFHR4646
Rough Opening14.5” X 30.5″14.5″ X 46.5″22.5″ X 22.5″22.5″ X 30.5″22.5″ X 38.5″22.5″ X 46.5″30.5″ X 30.5″30.5″ X 46.5″46.5″ X 46.5″
Daylight Area13.125” X 29.125″13.125″ X 45.125″21.125″ X 21.125″21.125″ X 29.125″21.125″ X 37.125″21.125″ X 45.125″29.125″ X 29.125″29.125″ X 45.125″45.125″ X 45.125″
Daylight Opening
(Square Feet)
2.654.113.094.275.456.615.899.1214.14

Custom-sized E-Class self-flashing skylights are also available. Contact your local residential dealer or call 800-388-0293.

NOTE: For all rectangular units, specify dimension parallel to roof ridge first (width).
