Ultraseal™ Fixed Glass (EF)
Wasco’s E-Class® installs in 1/3 the time and delivers up to 22% more daylight in fixed models!
Our fixed E-Class model (EF) is ready to go right out of the box – no mastic, no step-flashing, no sealants. Our one-piece curbframe and flashing design cuts 90 minute installation to 30 minutes!1 Plus, Wasco E–Class skylights deliver up to 22% more daylight!2 Our E–Class self-flashing skylights sit directly on the roof deck, giving you a larger glass area per rough opening compared to competitor. Backed by a 10 Year Leak Free Warranty.
The EF model is available in standard and custom sizes, with a wide range of accessories, glazings, and finish color options.
Wasco’s E-Class skylights feature condensation control without the use of weep holes for maximum energy efficiency. Wasco’s thermally broken vinyl curb frame incorporates a large condensation channel that collects condensation until it can naturally evaporate, eliminating the need for drainage weep holes that allow outside air to pass through the curb, diminishing the energy efficiency of the skylight.
Wasco E-Class self-flashing skylights are for use with thin roofing materials such as composition, slate or wood shingles and shakes up to 3/4″ thick. All E-Class models require a minimum 3:12 roof pitch. A Metal Roof Adapter is available for low profile 1″ standing seam metal roofs, minimum 4:12 pitch. Standard size models fit 16″ and 24″ on-center roof rafters.
(1) Compared to the leading competitor. (2) Fixed models.
- Glazes and Finishes
- Performance Data
- Standard Sizes

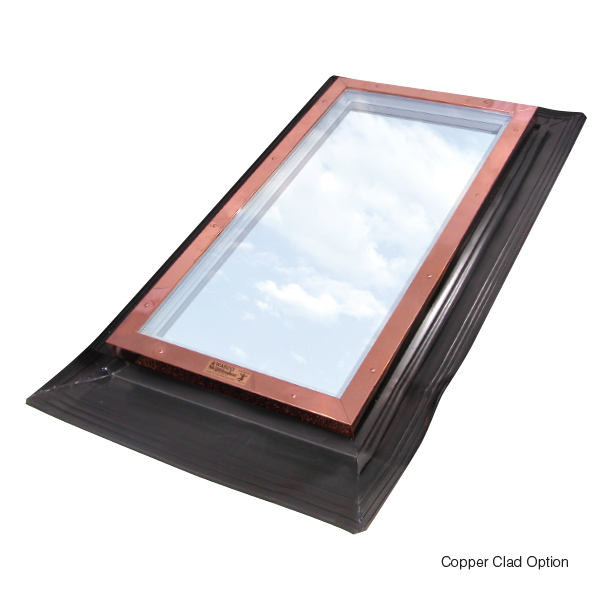

The standard baked enamel finish for all E-Class® Skylights is Quaker Bronze. Nine additional designer colors are available. Colors are shown below, approximated by computer display colors. Copper cladding is also available.
eMAX3 Triple Silver Coated Glazing
Wasco’s standard glazing. eMAX3 is an energy efficient tempered over tempered glazing which meets the version 6.0 Energy Star program for all climate zones. The eMAX3 Triple Silver Coated Series is a high performance Low-E insulated tempered glass with argon. Also available with tempered over laminated glass.
SageGlass is advanced dynamic glass that is electronically tintable and provides a beautiful and cost-effective way to control sunlight without blinds or shades, so you can manage glare and heat while maintaining a view to the outdoors. SageGlass is eligible for a 30% Federal Tax Credit for the cost of the unit and installation.
Available in fixed model EFHR only. Wasco Skylights with hurricane-resistant glazing meet IBC/IRC/FBC and other stringent state building codes for skylights installed in Wind Zone 3 coastal applications. Hurricane resistant glass appears to be ordinary glass, but shields against damage from wind-borne debris, accidental impacts, forced entry and even unwanted noise.
Thermal performance factors per NFRC 100
|Intermediate State 2||18%||0.28||0.15|
|Intermediate State 1||6%||0.28||0.10|
1Total Unit. 2Center of Glazing.
Explanation of Terms:
VLT (Visible Light): Radiant energy from 380nm – 780nm wavelengths. (% Transmittance): percentage of visible light directly transmitted through glass.
U-Factor: Air-to-air thermal conductance of glass and associated air/gas layers; units are Btu/hr.ft2 deg F.
SHGC (Solar Heat Gain Coefficient): Fraction of solar energy transferred indoors both directly (radiation) and indirectly (convection/absorption/re-radiation) through the glass (for reference, 1/8″ clear glass has a SHGC of 0.86).
|Rough Opening||14.5” X 30.5″||14.5″ X 46.5″||22.5″ X 22.5″||22.5″ X 30.5″||22.5″ X 38.5″||22.5″ X 46.5″||22.5″ x 54.5″||30.5″ X 30.5″||30.5″ X 46.5″||30.5″ X 54.5″||46.5″ X 46.5″|
|Daylight Area||13.125” X 29.125″||13.125″ X 45.125″||21.125″ X 21.125″||21.125″ X 29.125″||21.125″ X 37.125″||21.125″ X 45.125″||21.125″ X 53.125″||29.125″ X 29.125″||29.125″ X 45.125″||29.125″ X 53.125″||45.125″ X 45.125″|
Custom-sized E-Class self-flashing skylights are also available. Contact your local residential dealer or call 800-388-0293. SageGlass® glazing offered in select standard sizes only, no custom sizes available.
NOTE: For all rectangular units, specify dimension parallel to roof ridge first (width).
