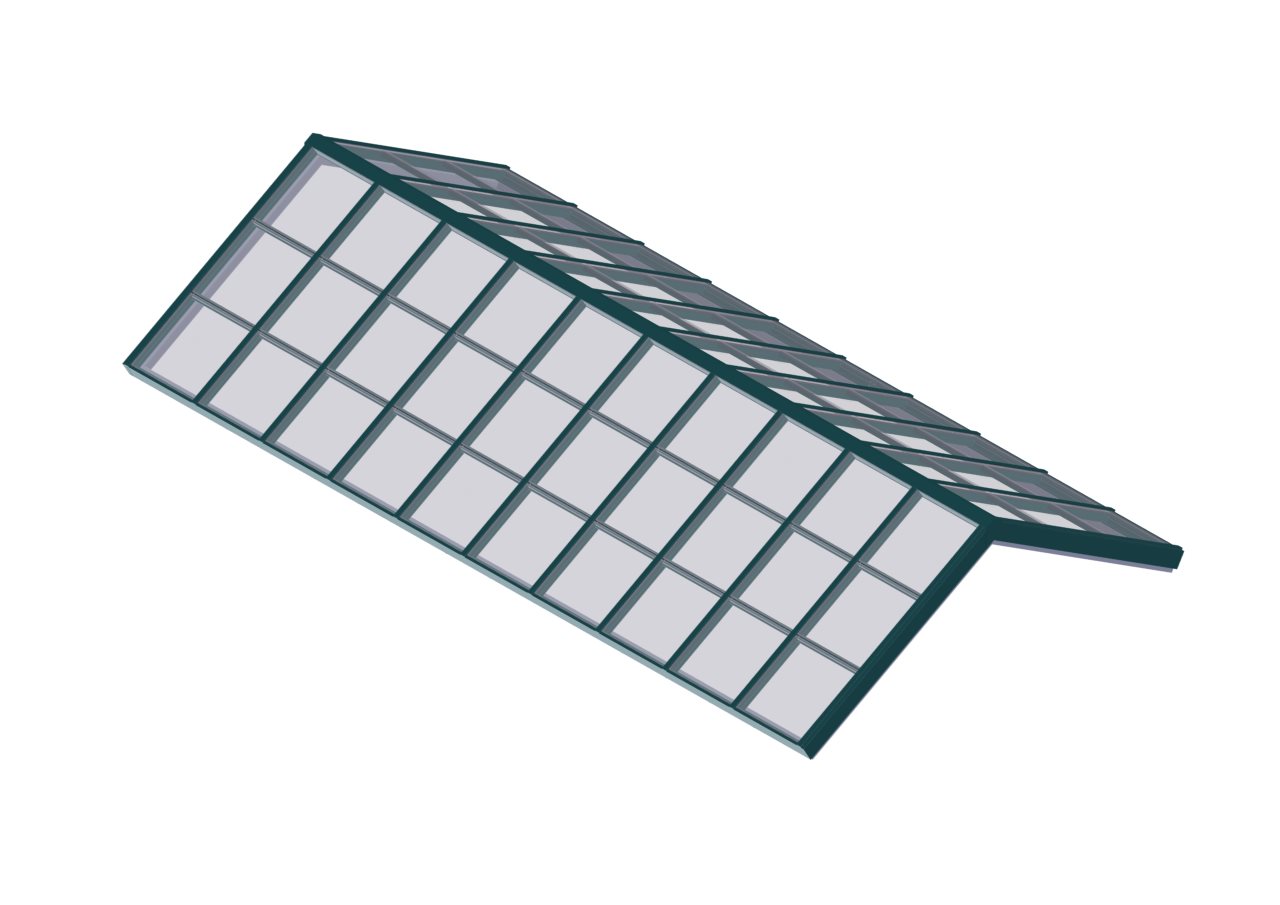

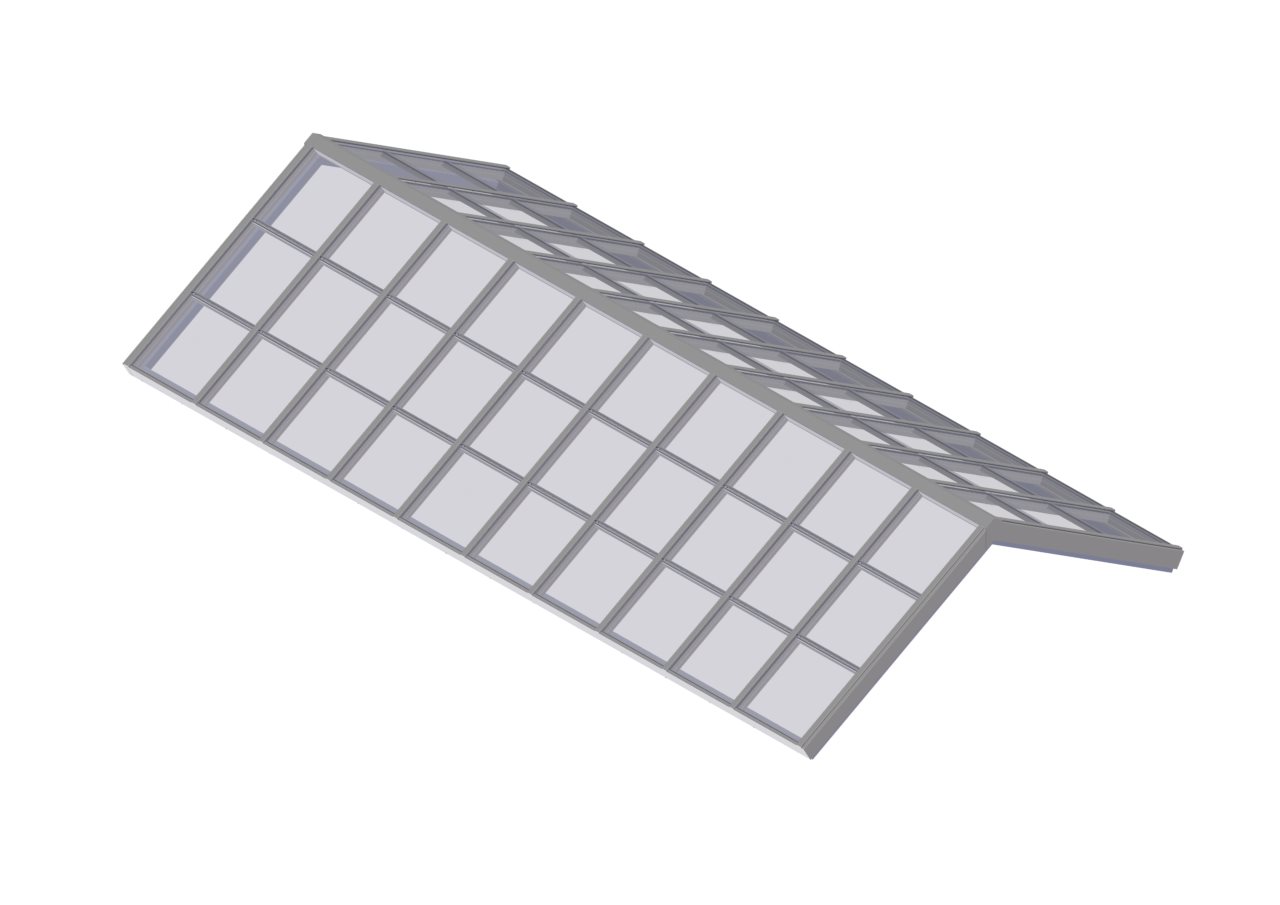

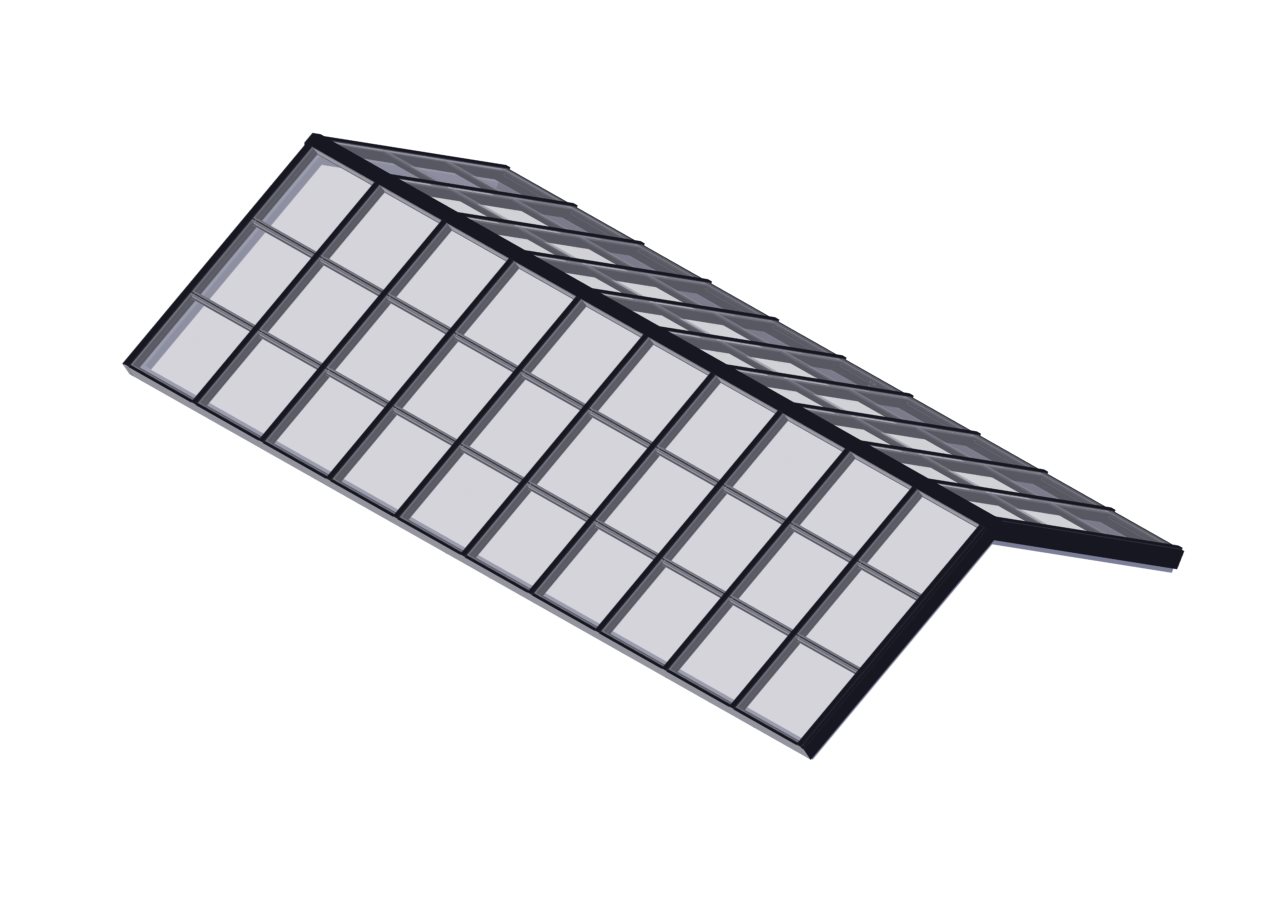

Pinnacle - Structural Ridge Spectacular, Large-Scale Custom Structures to Take Daylighting to New Heights Most common applications: Applications with a pitch between 15° and 60° Public education, healthcare, and office buildings Retail and shopping mall Key benefits: A metal frame capable of up to 40' wide Hinge design with infinitely variable pitch angles between 15° and 60° Choose the Pinnacle 350, 600, or 900 for aluminum rafter tube depths from 3.5" to 9" – the 350 can support spans of up to 18' wide, while the 900 can span up to 40' Available with high-performance glazing technology and a wide array of finish options Find Commercial Rep
Sizes Framing System Support Spans Up To* Aluminum Rafter Tube Depth Pinnacle 350 18′ Wide 3.5″ Pinnacle 600 30′ Wide 6″ Pinnacle 900 40′ Wide 9″ Pinnacle HU (Hurricane) 15′ Wide 3.5″ or 6″ *Approximate span widths depending on configuration and load. HU tested to meet 80 psf design pressure, and small and large missile impact. Available with laminated or insulating glazing.
Framing System Support Spans Up To* Aluminum Rafter Tube Depth Pinnacle 350 18′ Wide 3.5″ Pinnacle 600 30′ Wide 6″ Pinnacle 900 40′ Wide 9″ Pinnacle HU (Hurricane) 15′ Wide 3.5″ or 6″ *Approximate span widths depending on configuration and load. HU tested to meet 80 psf design pressure, and small and large missile impact. Available with laminated or insulating glazing.
