LumiWall 40

40mm Multiwall Polycarbonate Vertical Translucent Panel System

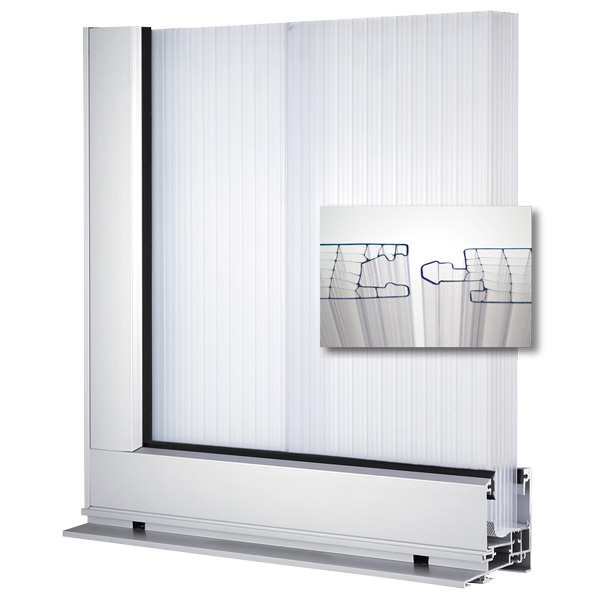

LumiWall 40 is constructed with fully fabricated, lightweight, interlocking 40mm tongue and groove multiwall polycarbonate panels. It is a dry glaze system and offers optional polyurethane thermal breaks for improved thermal performance. The system has unlimited height and width, and is easily installed by commercial contractors.

LumiWall has a coextruded layer of UV inhibitor that requires no maintenance. Polycarbonate is not made of fibers that will deteriorate, which allows it to maintain its shape, color, and strength even when exposed to UV light.

LumiWall 40 delivers superior light transmission, high impact resistance,* and low u-values, all at an affordable price. Available with a wide range of color choices.**

Features

  • Dry Glaze System – No Sealants Required On Panels
  • Fully Fabricated, Lightweight Interlocking Wall Panel System with Large Span Capabilities
  • Superior U-value, Light Transmission, SHGC, Impact Resistance*
  • System Depth: 23/4” Panel Frame, 4″ Subsill
  • Standard Subsill for Trouble Free Installation
  • Sloped Sill Nose with Recessed Weeps for Maximum Drainage
  • Available with or without Polyurethane Thermal Breaks for Improved Thermal Performance
  • Factory Finishes Meeting All AAMA Finish Standards
  • No Exposed Fasteners
  • NFRC Tested, 10 Year Warranty

*Compared to leading competitor.
**Clear, Opal and Opal IR are stocked. Other glazing options available, contact your local sales representative for more information.

Find a Sales Rep
  • LumiWall vs. FRP Comparison
  • Performance
  • Glazes and Finishes
  • Sizes

Fiberglass Reinforced Panels vs. Multiwall Polycarbonate Panels

LumiWall vs. FRP Comparison

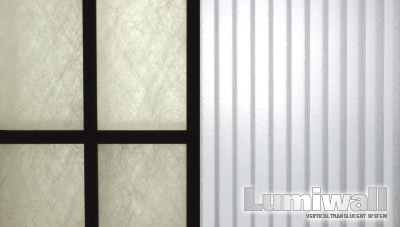

Fiberglass sandwich panel photographed side-by-side with a Wasco 40mm multiwall polycarbonate panel.

Fiberglass exterior and interior face sheets are adhered to an aluminum grid core. The grid core can also be thermally broken. The typical .23 u-value panel is insulated with fiberglass. Interior and exterior panels are fastened to the grid core with adhesives and the system is installed with exposed fasteners.

lumiwall-tgWasco’s 40mm multiwall polycarbonate system—LumiWall—is constructed with fully fabricated, lightweight, interlocking tongue and groove multiwall polycarbonate panels. It is a dry glaze system requiring no sealants on the panels and offers optional polyurethane thermal breaks in the frame for improved thermal performance. Two separate assembly points create a tight attractive corner with no exposed fasteners.

The fiberglass faces have a coating for UV protection, which is subject to weathering away resulting in color change. The absence of the coating will cause the fiberglass to “fiberbloom”. This is common with older panels and leads to additional discoloration with the added retention of dirt. The fiberglass warranty calls for on-going UV maintenance by reapplying coatings.

LumiWall has a coextruded layer of UV inhibitor that requires no maintenance. Polycarbonate is not made of fibers that will deteriorate, which allows it to maintain its shape, color, and strength even when exposed to UV light.

There is a potential for the dew point to fall within fiberglass panels between the faces. Moisture on the fiberglass insulation can lead to mold development, contributing to discoloration.

Lumiwall has no adhered faces and is constructed with a sloped sill nose with recessed weeps for maximum drainage.

LumiWall vs. FRP Comparison Sheet
Download PDF

LEED Compliance

  • Post Industrial Recycled Content: 18%
  • Pre Industrial Recycled Content: 18%
  • Manufacturing Location: Wells, Maine 04090
Test Method Results/Comments
Flammability
Flame Spread 40mm Panel ASTM E-84 / UL 723 0 Flame / 120 Smoke
Smoke Developed IBC Class: CC1 Rated
Burn Extent 40mm Panel ASTM D-635 CC1 – less than 1”/minute
Self Ignition Temperature 40mm Panel ASTM D-1929 986 deg F
Structural
OSHA Fall Protection 40mm Panel ASTM D-256 .937 – 18.3 ft lb/In/In (Izod Impact)
Uniform Load Deflection Complete System ASTM E-330 0.20” Deflection @ +55psf / -55psf
Uniform Load Structural Complete System ASTM E-330 0.03” Deflection @+82psf / -82psf
Infiltration
Air Infiltration Complete System ASTM E-283 <0.10 cfm/ft² @ 1.57psf
Water Penetration Complete System ASTM E-331 No Water Penetration @ 12psf
Performance Data
U-factor Complete System* NFRC-100-2010
Solar Heat Gain Coefficient Complete System* NFRC-200-2010
Colors** LT SHGC U-Factor
Clear IR 35% 0.30 0.27
Opal IR 22% 0.26 0.28
Opal 26% 0.34 0.30
Warranty  Test Method  Results/Comments
10 Years Complete System40mm Panel ASTM D-1925
EN 410 ed.
Yellowing, Loss of Light Transmission
Compared to original value
<10 Delta E after 10 Years
<6% Light Transmission after 10 Years

*With Polyurethane Thermal Breaks
**Clear, Opal and Opal IR stocked. Other colors and panel thicknesses are available, contact your local sales representative for more information.

Finishing

Bronze and Clear Anodized stocked. All other Wasco finishes also available, contact your local sales representative for more information.

Glazing

Clear, Opal and Opal IR stocked. Other glazing options available, contact your local sales representative for more information.

  • Panel Width: 19.685″
  • Panel Length: Aprox 38′ – Can be cut to custom lengths
  • System Height w/ Support: Max height 25′ without stack joint. Unlimited height with stack joints
  • System Width: Unlimited
