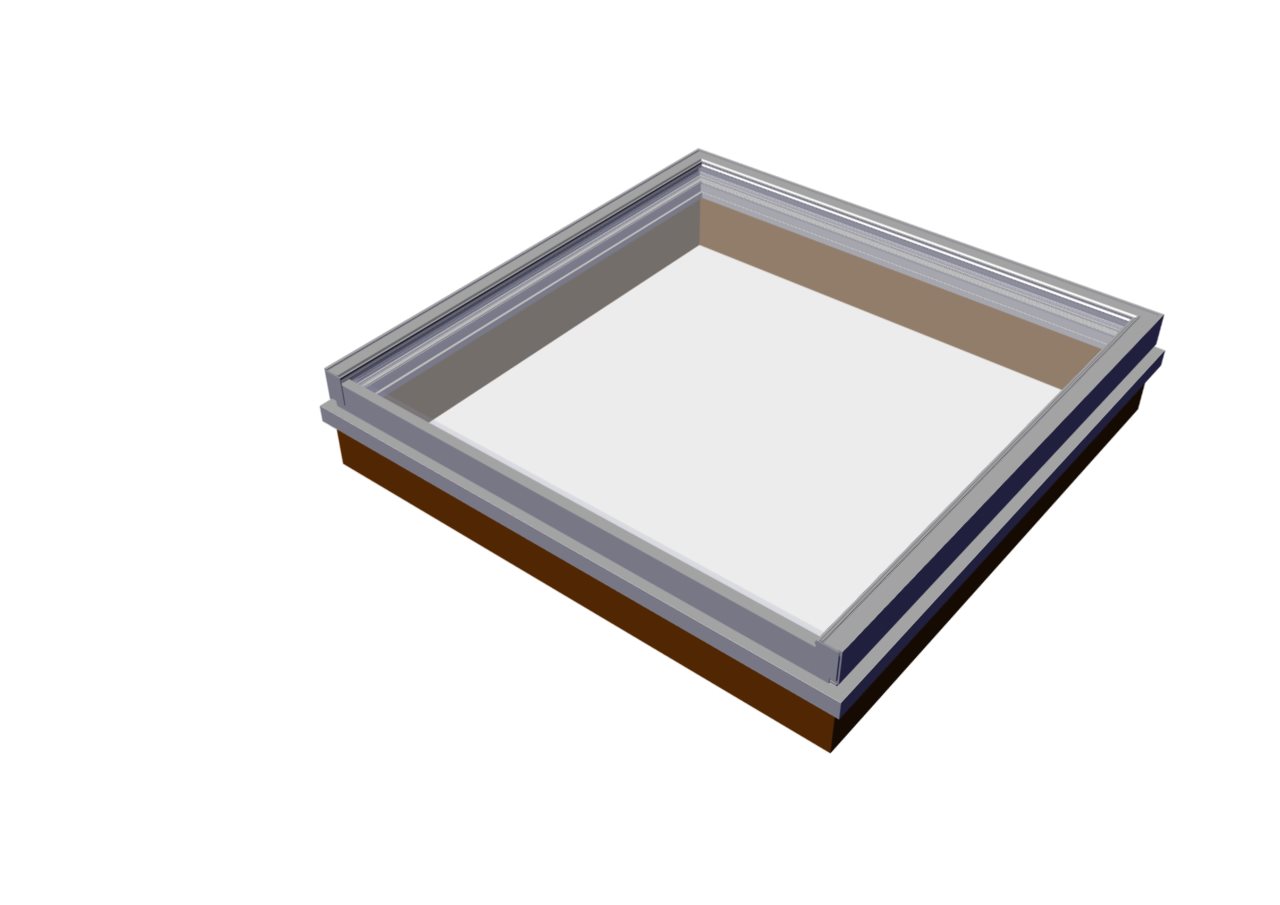

LP_MILL

Low Profile

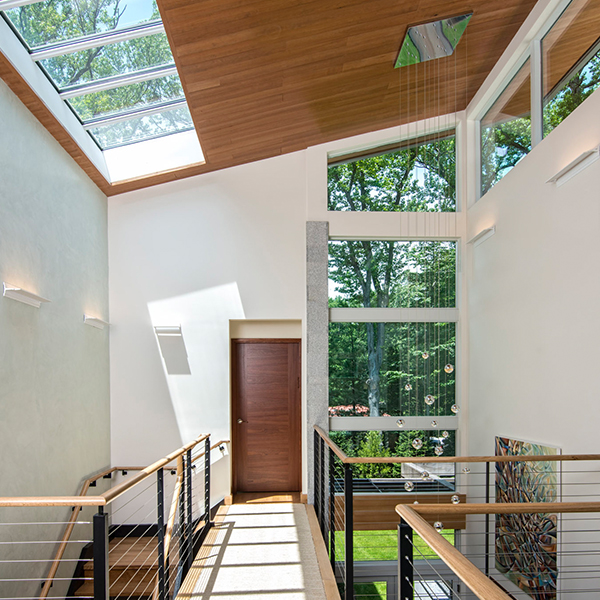

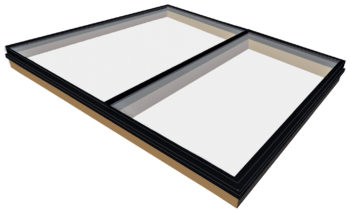

Developed for pitched roof applications, the Wasco Low Profile System is an aluminum-frame glass system that lays over roof rafters, creating a narrow line frame for a clean and appealing look on the roof line. Available in curb-mount (LPGS) or self-flashing deck-mount (LPG), the system accommodates multiple insulated glass panels. Thermally-broken aluminum frame ships assembled and ready for field glazing with 1-1/16” high performance low-E insulated glass for energy efficiency and solar control.

Find a Dealer
  • Glazes and Finishes
  • Standard Sizes

Finish Colors

Mill finish aluminum is standard on all Architectural Series models. We also offer anodized and high-performance designer color finishes, as well as copper cladding.

Finish Color Options

Glazing Options

A 1-1/16” high performance low-e laminated glass is standard.





Model
Inside Rough Opening
O.D. Curb
No. Glass Panels
2′ 0″
Rafter
Spacing
Width*
Height*
Width*
Height*
LPGS/LPG-2448
1′ 10-1/2″
3′ 10-1/2″
2′ 1-1/2″
4′ 1-1/2″
1
LPGS/LPG-2472
1′ 10-1/2″
5′ 10-1/2″
2′ 1-1/2″
4′ 1-1/2″
1
LPGS/LPG-4848
3′ 10-1/2″
3′ 10-1/2″
4′ 1-1/2″
4′ 1-1/2″
2
LPGS/LPG-4872
3′ 10-1/2″
5′ 10-1/2″
4′ 1-1/2″
6′ 1-1/2″
2
LPGS/LPG-7248
5′ 10-1/2″
3′ 10-1/2″
6′ 1-1/2″
4′ 1-1/2″
3
LPGS/LPG-7272
5′ 10-1/2″
5′ 10-1/2″
6′ 1-1/2″
6′ 1-1/2″
3
LPGS/LPG-9648
7′ 10-1/2″
3′ 10-1/2″
8′ 1-1/2″
4′ 1-1/2″
4
LPGS/LPG-9672
7′ 10-1/2″
5′ 10-1/2″
8′ 1-1/2″
6′ 1-1/2″
4
LPGS/LPG-12048
9′ 10-1/2″
3′ 10-1/2″
10′ 1-1/2″
4′ 1-1/2″
5
LPGS/LPG-12072
9′ 10-1/2″
5′ 10-1/2″
10′ 1-1/2″
6′ 1-1/2″
5
1′ 4″
Rafter
Spacing
LPGS/LPG-3248
2′ 6-1/2″
3′ 10-1/2″
2′ 9-1/2″
4′ 1-1/2″
1
LPGS/LPG-3272
2′ 6-1/2″
5′ 10-1/2″
2′ 9-1/2″
6′ 1-1/2″
1
LPGS/LPG-6448
5′ 2-1/2″
3′ 10-1/2″
5′ 5-1/2″
4′ 1-1/2″
2
LPGS/LPG-6472
5′ 2-1/2″
5′ 10-1/2″
5′ 5-1/2″
6′ 1-1/2″
2
LPGS/LPG-9648
7′ 10-1/2″
3′ 10-1/2″
8′ 1-1/2″
4′ 1-1/2″
3
LPGS/LPG-9672
7′ 10-1/2″
5′ 10-1/2″
8′ 1-1/2″
6′ 1-1/2″
3
LPGS/LPG-12848
10′ 6-1/2″
3′ 10-1/2″
10′ 9-1/2″
4′ 1-1/2″
4
LPGS/LPG-12872
10′ 6-1/2″
5′ 10-1/2″
10′ 9-1/2″
6′ 1-1/2″
4

* Requires 3 on 12 minimum pitch.

LPGS = Curb Mount
LPG = Deck Mount
