Hurricane Rated Domed Skylights

Domed Unit – Hurricane Resistant

Wasco’s Hurricane Resistant unit provides superior safety and security that are Impact Rated for Wind-Borne Debris Region (WBDR) and meet other stringent state building codes for dome skylights in Wind Zone 3 coastal applications.

Curb mount units available with double impact modified acrylic domes (DDCS-HR).

  • Provided with impact modified domes to meet test requirements: ASTM-1886, ASTM-1996, TAS 201, 202 and 203
  • Models 5252 or smaller can achieve a 75DP rating
  • DDCSHR Models 5276 achieve a 60 DP and 5296 achieve a 45 DP

Also available as Florida Product Approved / Non-Impact Zones in Deck Mount model (DDCA9_FBC).

Clear selection
  • Double Dome Curb Mount
    (DDCS-HR)
  • Double Dome Deck Mount
    (DDCA9-FBC)

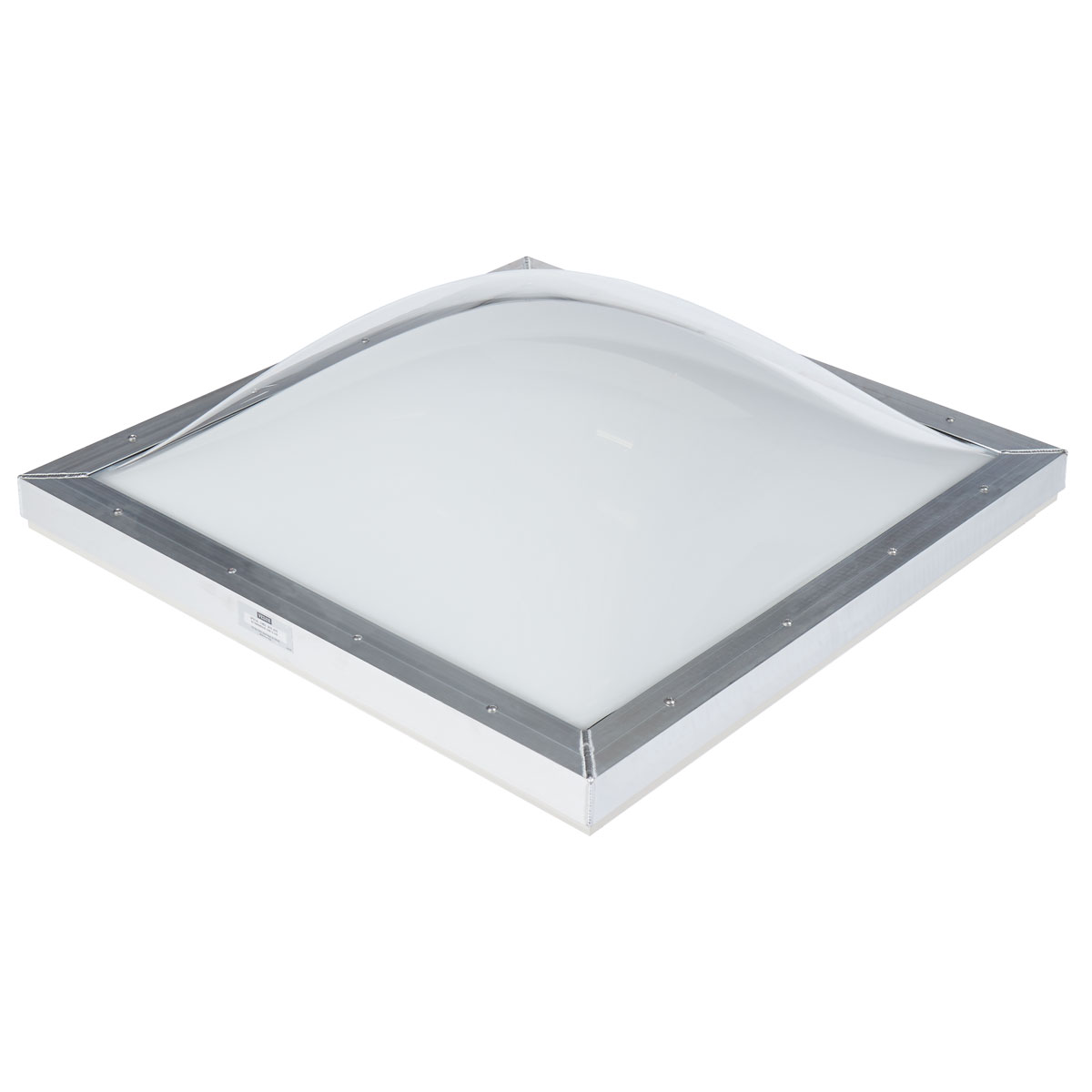

Curb Mount (DDCS-HR) – Impact Rated for Wind-Borne Debris Region (WBDR)

Curb mount units available with double impact modified acrylic domes to meet test requirements: ASTM-1886, ASTM-1996, TAS 201, 202 and 203. Models 5252 or smaller can achieve a 75 DP rating, 5276 achieve a 60 DP and 5296 achieve a 45 DP.

  • For use on 1 ½” thick site-built or prefabricated curbs
  • Unit is fully assembled with stainless steel screws and high performance weather seals
  • Heat welded one-piece curb frame construction: heavy vinyl extruded curb frame with co-extruded weather seals, integral condensation gutter and counterflashing downward leg
  • Aluminum extruded heliarc welded retainer frame
  • Optional copper cladding available
  • Safety screens available

Technical Information

Impact Rated for WBDR only / NON-HVHZ

FBC # (2014) Model Design Pressure +/-(psf) WBDR HVHZ Max. Glazing Size
14417.5 DDCS-HR 5252 75/75 Yes No 52″ x 52″
14417.6 DDCS-HR 5276 60/60 Yes No 52″ x 76″
14417.7 DDCS-HR 5296 45/45 Yes No 52″ x 96″

Standard Sizes

Model Curb Mount (DDCSHR) O.D. of Curb
DDCSHR-2424 22″ x 22″
DDCSHR-2828 25 ¼” x 25 ¼”
DDCSHR-2836 25 ¼” x 33 ¼”
DDCSHR-2852 25 ¼” x 49 ¼”
DDCSHR-3636 33 ¼” x 33 ¼”
DDCSHR-3652 33 ¼” x 49 ¼”
DDCSHR-3676 33 ¼” x 72 ½”
DDCSHR-4242 40″ x 40″
DDCSHR-4280 40″ x 78″
DDCSHR-5252 49 ¼” x 49 ¼”
DDCSHR-5276 49 ¼” x 72 ½”
DDCSHR-5284 49 ¼” x 81 ½”
DDCSHR-5296 49 ¼” x 92 ½”

Glazing Options

Outer:

  • Clear Impact Modified Acrylic
  • White Impact Modified Acrylic

Inner:

  • Clear Impact Modified Acrylic
  • White Impact Modified Acrylic

Finish Options

Frame finish is PVC, white interior and bronze exterior. Aluminum retainer frame.

Retainer Finish:

  • Mill (Standard)
  • Anodized, Kynar 500, Baked Enamel (more information)
  • Copper Clad

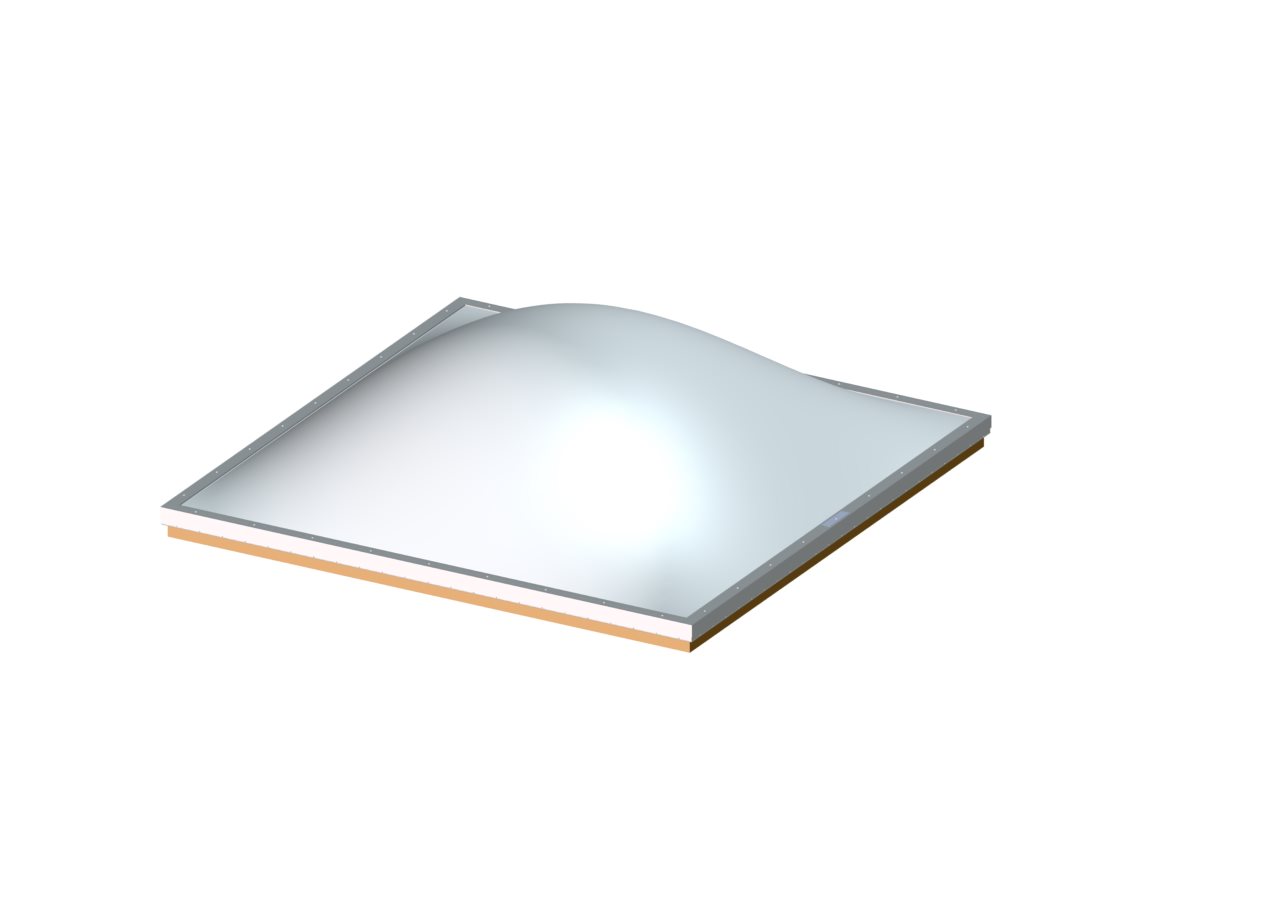

Deck Mount (DDCA9-FBC) – Florida Product Approved / Non-Impact Zones

Model DDCA9-FBC is Florida Product Approved / Non-Impact Zones. Curb available with 9″ height. Custom sizes available.

  • Florida Product Approved / Non-Impact Zones
  • 9″ Curb heights available
  • Skydome Unit is fully assembled with corrosion proof screws and high performance weather seals
  • Heavy vinyl extruded curb with co-extruded weather seals, integral condensation gutter and locking system for inner and outer skins of insulated aluminum curb
  • Optional copper cladding available
  • Aluminum curb and extruded retainer frame components have heliarc welded corners for long-term dependability
  • Glazing is available in thermoformed acrylic double domes
  • Safety screens available



Technical Information

Impact Rated for WBDR only / NON-HVHZ

FBC # (2010) Model Design Pressure +/-(psf) Test Pressure (psf) Impact Resistant HVHZ Max. Glazing Size Test Report #
14417.4 DDCA9-FBC 30/30 60/60 No No 60″ x 60″ ETC-07-060-19997
Glazing: .105/.110 acrylic. Other sizes up to 9898 available with thicker acrylic glazing.

Standard Sizes

Model Curb Mount (DDCA9) R.O. of Curb
DDCA9_FBC-2424 19″ x 19″
DDCA9_FBC-2828 22 ¼” x 22 ¼”
DDCA9_FBC-2836 22 ¼” x 30 ¼”
DDCA9_FBC-2852 22 ¼” x 46 ¼”
DDCA9_FBC-3636 30 ¼” x 30 ¼”
DDCA9_FBC-3652 30 ¼” x 46 ¼”
DDCA9_FBC-3676 30 ¼” x 69 ½”
DDCA9_FBC-4242 37″ x 37″
DDCA9_FBC-4280 37″ x 75″
DDCA9_FBC-5252 46 ¼” x 46 ¼”
DDCA9_FBC-5276 46 ¼” x 69 ½
DDCA9_FBC-6060 55″ x 55″

Glazing Options

Outer:

  • Clear
  • #2412 Bronze
  • #2447 White

Inner:

  • Clear
  • #2447 White



Finish Options

Frame finish is PVC, white interior and bronze exterior. Aluminum retainer frame.

Retainer Finish:

  • Mill (Standard)
  • Anodized, Kynar 500, Baked Enamel (more information)
  • Copper Clad
