Extended Pyramid

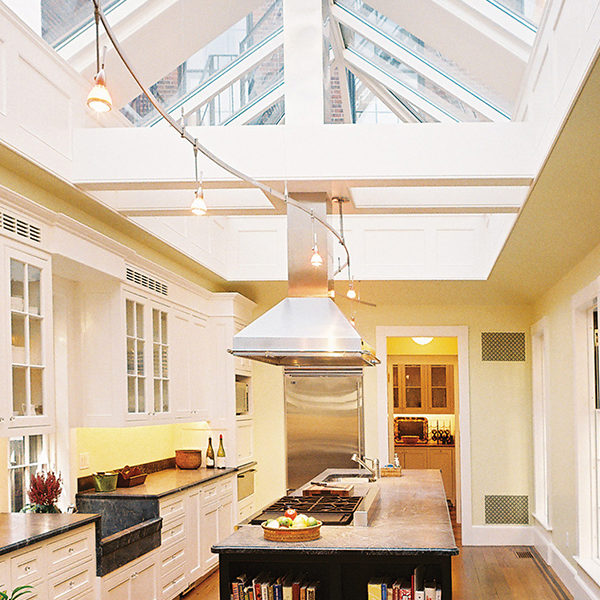

Wasco’s extended pyramid residential skylighting system gives you a custom look at an affordable cost.

A lightweight system for flat roofs providing spans of up to 5′ wide by unlimited length. Curb-mount design using site-built curbs enables unlimited applications on both pitched and flat roofs. The thermally-broken aluminum frame ships ready for field glazing.

Find a Dealer
  • Glazes and Finishes
  • Standard Sizes

Finish Colors

Mill finish aluminum is standard on all Architectural Series models. We also offer anodized and high-performance designer color finishes, as well as copper cladding.

Finish Color Options

Glazing Options

A 1-1/16” high performance low-e laminated glass is standard. Polycarbonate panels, with or without Lumira® Aerogel fill, are available. Contact Wasco for more information.





Model No.
O.D. Curb
Inside Rough Opening
Width*
Length*
Width
Length
CPYH-3648
3’0”
4’0”
2′ 5″
3′ 5″
CPYH-3660
3’0”
5’0”
2′ 5″
4’ 5″
CPYH-3672
3’0”
6’0”
2′ 5″
5’ 5″
CPYH-3696
3’0”
8’0”
2′ 5″
7′ 5″

Larger and custom sizes, with varying pitches, are available. Contact Wasco for more information.

* Based on curb of 3-1/2″ wide without inside finish board.
