Thermally Efficient EcoSky Skylights

EcoSky Series Thermally Efficient Unit Skylights

Wasco introduces its revolutionary new EcoSky series, a green, glare-free unit that provides high quality diffused light with SHGC as low as .34 and a high VLT for maximum usable LUX delivery.*

Our Acrylite® Satin Sky glazing is an innovative acrylic sheet that is a powerful sun reflector which greatly reduces solar heat gain, making it ideal for both hot and cold climates. Satin Sky is impact modified, infrared blocking, light diffusing, and 100% haze white.

*EcoSky3 Model



Revit Icon Download BIM Models for Revit®

EcoSky3 – Single Dome with Lumira Aerogel Panel:
E3C (Standard Dome) RFA   |   E3CP (Pyramid Dome) RFA   |   View on Autodesk Seek

EcoSky – Double Dome:
EC (Standard Dome) RFA   |   ECP (Pyramid Dome) RFA   |   View on Autodesk Seek



Clear selection
  • EcoSky3 - Single Dome with Lumira Aerogel
  • EcoSky - Double Dome
  • Safety Considerations
  • Installation Instructions

Acrylite® Satin Sky glazing domed over a Lumira® Aerogel filled polycarbonate panel

Meets the IECC 2015 requirements in all climate zones!

Our EcoSky3 model features Satin Sky Glazing with a Lumira Aerogel panel offering 3x times the thermal performance of the leading competitor with excellent visible light transmission. By adapting nano technology, Lumira Aerogel is able to provide a tremendous thermal insulator that is also environmentally sound. Lumira Aerogel works so well because of what it does on a nano-scale — it permanently stops convective and conductive thermal transfer without an appreciable drop in light transmission.

  • Solar Heat Gain As Low As .34
  • Best In Industry R-Value
  • Glare-free, full spectrum diffused light
  • “Green” product that’s perfect for Cradle to Cradle designs
  • Completely moisture resistant
  • Will not support growth of mold, mildew or fungus
  • Reduces sound transmission
  • UV stable
  • Performance will not deteriorate over time
  • NFRC tested, rated and certified

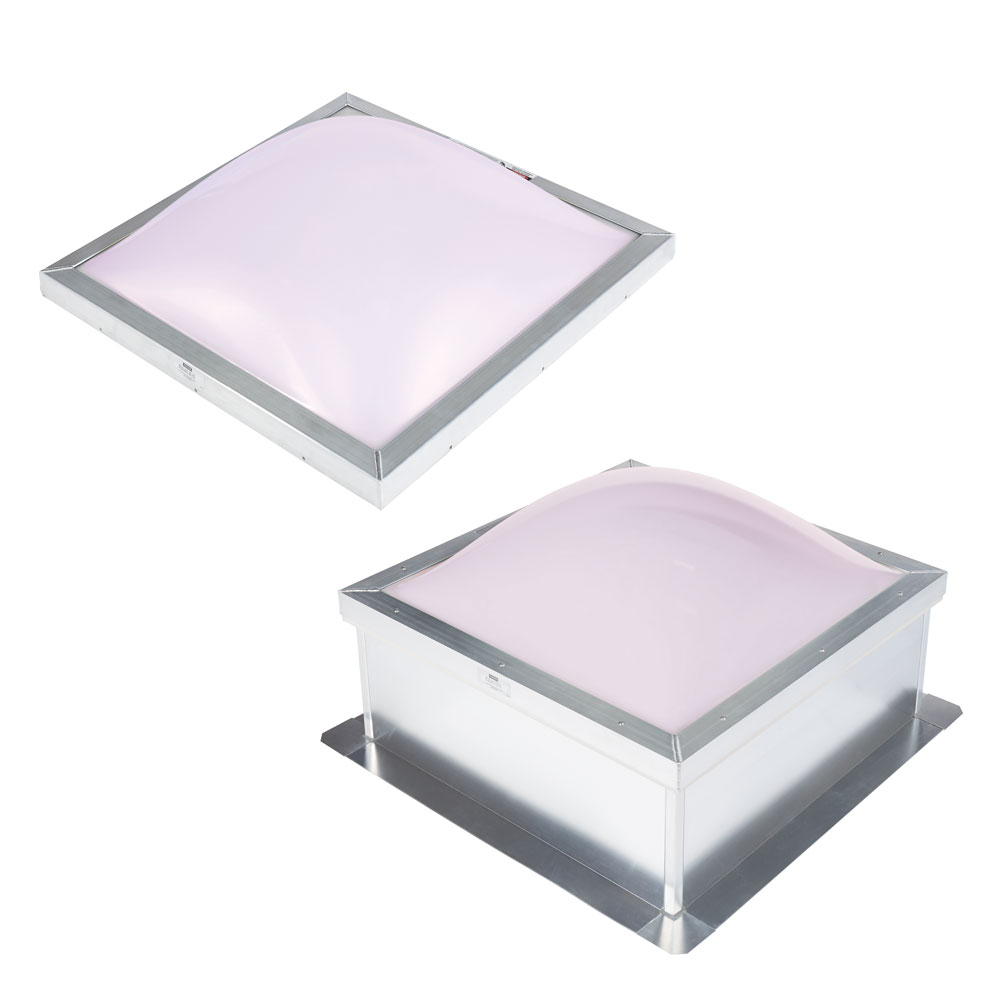

Available in curb mount (E3CS) or deck mount (E3CA)

Performance Data

Curb Mount (E3CS) Deck Mount (E3CA)
U-Factor .25 BTU/HR–FT2–°F .45 BTU/HR–FT2–°F
Solar Heat Gain Coefficient .34 .34
Visible Light Transmission 43% 43%

Standard Sizes

(Custom Sizes Available)

Model Curb Mount (E3CS)
O.D. of Curb
Deck Mount* (E3CA)
Rough Opening
E3CS/CA–2828 25 ¼” x 25 ¼” 22 ¼” x 22 ¼”
E3CS/CA–2836 25 ¼” x 33 ¼” 22 ¼” x 30 ¼”
E3CS/CA–2852 25 ¼” x 49 ¼” 22 ¼” x 46 ¼”
E3CS/CA–3636 33 ¼” x 33 ¼” 30 ¼” x 30 ¼”
E3CS/CA–3652 33 ¼” x 49 ¼” 30 ¼” x 46 ¼”
E3CS/CA–3676 33 ¼” x 72 ½” 30 ¼” x 69 ½”
E3CS/CA–4242 40″ x 40″ 37″ x 37″
E3CS/CA–4280 40″ x 78″ 37″ x 75″
E3CS/CA–5252 49 ¼” x 49 ¼” 46 ¼” x 46 ¼”
E3CS/CA–5276 49 ¼” x 72 ½” 46 ¼” x 69 ½”
E3CS/CA–5296 49 ¼” x 92 ½” 46 ¼” x 89 ½”
E3CS/CA–6060 58″ x 58″ 55″ x 55″
E3CS/CA–6476 60 ½” x 72 ½” 57 ½” x 69 ½”
E3CS/CA–6496 60 ½” x 92 ½” 57 ½” x 89 ½”

 *Available in 9″, 12″, or 18″ high curbs.

Finish Colors

Frame finish is PVC, white interior and bronze exterior. Aluminum retainer frame.

Retainer Finish:

  • Mill (Standard)
  • Anodized, Kynar 500, Baked Enamel (more information)
  • Copper Clad

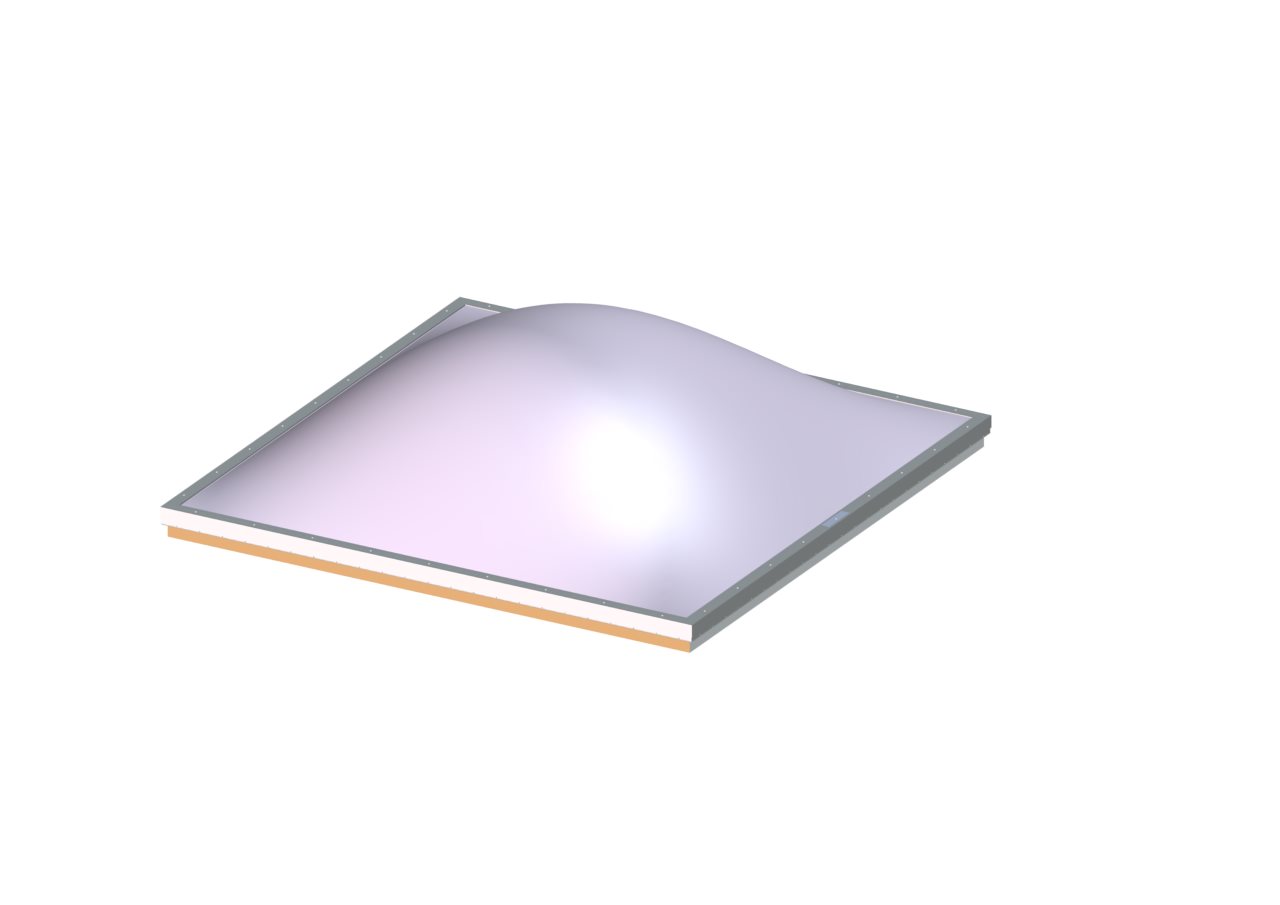

Acrylite® Satin Sky glazing  over a second clear impact modified acrylic dome

High-performance light diffusing glazing

Our Acrylite® Satin Sky glazing is a powerful sun reflector which greatly reduces solar heat gain, making it ideal for both hot and cold climates. Satin Sky is impact modified, infrared blocking, light diffusing, and 100% haze white.

  • 100% haze – great light diffusion
  • Utilizes an impact modified white acrylic outer dome with infrared blockers

Available in curb mount (ECS) or deck mount (ECA)

Performance Data

Curb Mount (ECS) Deck Mount (ECA)
U-Factor .64 BTU/HR-FT2-°F .82 BTU/HR-FT2-°F
Solar Heat Gain Coefficient .47 .47
Visible Light Transmission 61% 62%

Standard Sizes

(Custom Sizes Available)

Model Curb Mount (ECS)
O.D. of Curb
Deck Mount* (ECA)
Rough Opening
ECS/CA–2828 25 ¼” x 25 ¼” 22 ¼” x 22 ¼”
ECS/CA–2836 25 ¼” x 33 ¼” 22 ¼” x 30 ¼”
ECS/CA–2852 25 ¼” x 49 ¼” 22 ¼” x 46 ¼”
ECS/CA–3636 33 ¼” x 33 ¼” 30 ¼” x 30 ¼”
ECS/CA–3652 33 ¼” x 49 ¼” 30 ¼” x 46 ¼”
ECS/CA–3676 33 ¼” x 72 ½” 30 ¼” x 69 ½”
ECS/CA–4242 40″ x 40″ 37″ x 37″
ECS/CA–4280 40″ x 78″ 37″ x 75″
ECS/CA–5252 49 ¼” x 49 ¼” 46 ¼” x 46 ¼”
ECS/CA–5276 49 ¼” x 72 ½” 46 ¼” x 69 ½”
ECS/CA–5296 49 ¼” x 92 ½” 46 ¼” x 89 ½”
ECS/CA–6060 58″ x 58″ 55″ x 55″
ECS/CA–6476 60 ½” x 72 ½” 57 ½” x 69 ½”
ECS/CA–6496 60 ½” x 92 ½” 57 ½” x 89 ½”

 *Available in 9″, 12″, or 18″ high curbs.

Finish Colors

Frame finish is PVC, white interior and bronze exterior. Aluminum retainer frame.

Retainer Finish:

  • Mill (Standard)
  • Anodized, Kynar 500, Baked Enamel (more information)
  • Copper Clad



fall safetySAFETY CONSIDERATIONS: Although these units are designed to protect against accidental falls, these skylights should not be walked upon under any circumstances. The owner or contractor should restrict access only to authorized personnel who have been adequately cautioned as to the location of the skylights.
