Circular Dome Skylights

Circular Units

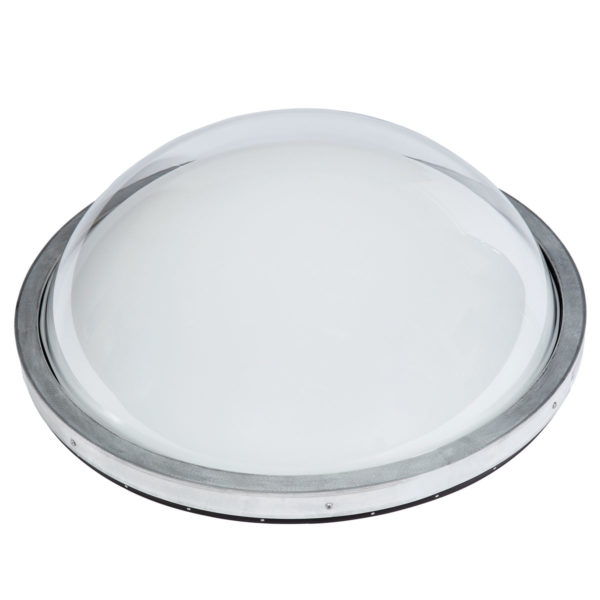

Curb Mount Model DDCCM:

These double dome circular curb mount units have been updated to today’s specifications by incorporating our CS vinyl curb with a rolled aluminum retainer. These structural improvements reduce condensation and increase thermal performance by eliminating the need for weep holes. Glazing is available in thermoformed acrylic or impact modified double domes.



Deck Mount Model DDCDM:

These self-flashing units utilize a fiberglass curb that is constructed of tough polyester resin and fiberglass with all exposed surfaces gel coated white for a uniform cosmetic appeal. Units are insulated with fiberglass batten insulation with 9″ high curbs and 3″ wide mounting flange. Standard sizes come with double acrylic domes in clear, bronze tint or white.

Clear selection
  • Glazes and Finishes
  • Standard Sizes
  • Safety Considerations
  • Installation

Glazing Options

Curb Mount Model DDCCM:

Outer:

  • Clear
  • #2412 Bronze
  • #2447 White
  • Satin Sky

Inner:

  • Clear
  • #2447 White

Deck Mount Model DDCDM:

Outer:

  • Clear
  • #2412 Bronze

Inner:

  • Clear
  • #2447 White



Finish Options

Curb Mount Model DDCCM:

Frame finish is PVC, white interior and bronze exterior. Aluminum retainer frame.

Retainer Finish:

Deck Mount Model DDCDM:

Fiberglass curb and retainer with white gel coat.

Curb Mount (DDCCM)Outside Dimension of Curb
DDCCM–3634”
DDCCM–4846”
DDCCM–6057”
DDCCM–7270”
DDCCM–8482”
DDCCM–9694”
Deck Mount (DDCDM)Rough Opening
DDCDM-3024″
DDCDM-3631″
DDCDM-4843″
DDCDM-6054″
DDCDM-7267″
DDCDM-8479″
DDCDM-9691″

Custom sizes are not available.

Safety ConsiderationsWasco skylights are designed to withstand normal elements of the weather. They are not designed to withstand human impact or falling objects. These skylights should not be walked upon under any circumstances. The owner or designer should restrict access only to authorized personnel who have been adequately cautioned as to the location of the skylights and informed of the warning above, or said owner should provide protective guard rails or screens around the skylights.

Unit Skylight Installation Instructions

Curb Mount: Download PDF

Deck Mount: Download PDF



Construction Video: Circular Curbs
