Blast Resistant Dome Skylights

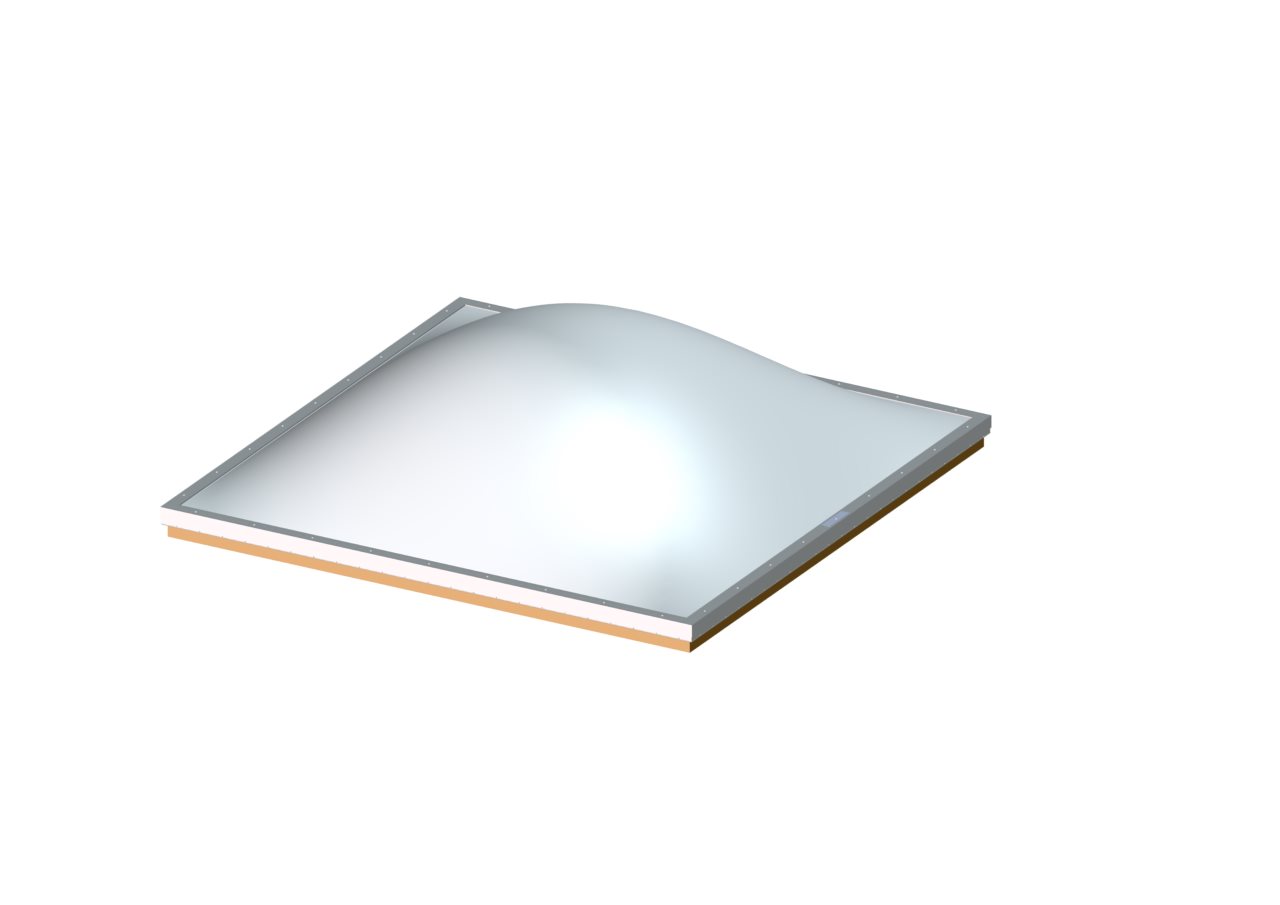

Domed Unit – Blast Resistant

Blast Resistant Glazing

  • Provided with co-polyester to meet test requirements: ASTM–F1642–04, GSA–TS01–2003.
  • Available in sizes up to a model 5276.

Curb Mount

  • For use on 1-1/2″ thick site-built or prefabricated curbs
  • Unit is fully assembled with stainless steel screws and high performance weather seals
  • Heat welded one-piece curb frame construction: heavy vinyl extruded curb frame with co-extruded weather seals, integral condensation gutter and counterflashing downward leg
  • Aluminum extruded heliarc welded retainer frame
  • Optional copper cladding available
  • Safety screens available
Find a Sales Rep
  • Glazes and Finishes
  • Standard Sizes

Glazing Options

Outer:

  • Clear

Inner:

  • Clear
  • #2447 White

Finish Options

Frame finish is PVC, white interior and bronze exterior. Aluminum retainer frame.

Retainer Finish:

  • Mill (Standard)
  • Anodized, Kynar 500, Baked Enamel (more information)
  • Copper Clad





Model O.D. of Curb
DDCSBR–2828 25 ¼” x 25 ¼”
DDCSBR–2836 25 ¼” x 33 ¼”
DDCSBR–2852 25 ¼” x 49 ¼”
DDCSBR–3636 33 ¼” x 33 ¼”
DDCSBR–3652 33 ¼” x 49 ¼”
DDCSBR–3676 33 ¼” x 72 ½”
DDCSBR–4242 40″ x 40″
DDCSBR–4280 40″ x 78″
DDCSBR–5252 49 ¼” x 49 ¼”
DDCSBR–5276 49 ¼” x 72 ½”
