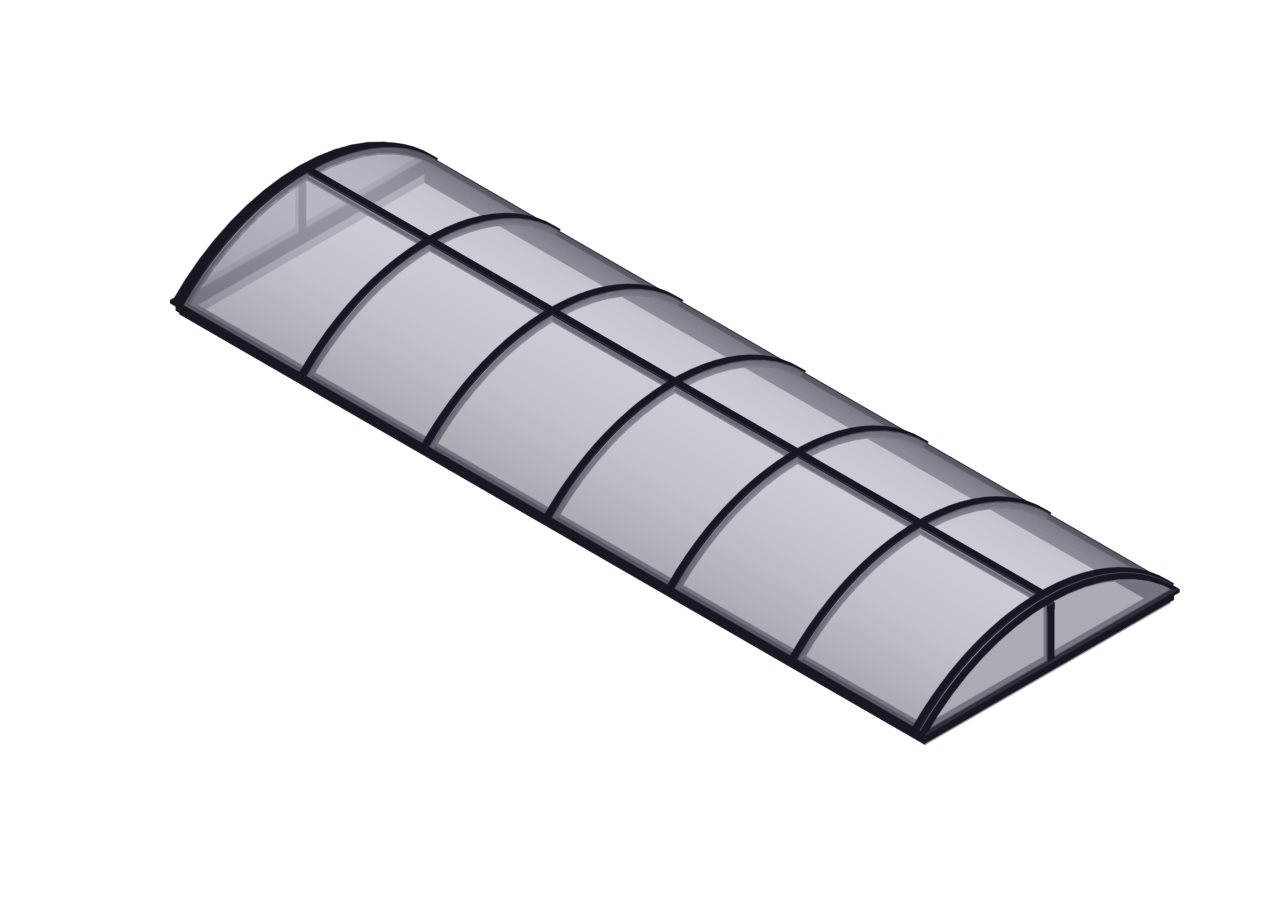

Continuous Vaulted Skylight System

Continuous Vault Systems

Wasco’s Continuous Vault system is designed for unlimited applications utilizing site-built curbs on flat roofs.

  • Ribs may be spaced at 48″ max o.c.
  • Vaults are glazed with your choice of acrylic, polycarbonate or impact modified acrylic in clear, tinted and thermal translucent options.

Available with Lumira® Aerogel filled polycarbonate panels for improved thermal performance and excellent light diffusion.

Finish Options

  • Mill (Standard)
  • Anodized – Clear, Bronze (Dark, Medium or Light)
  • Kynar (Various colors)
  • Baked Enamel (Various colors)



Revit IconDownload BIM Models for Revit®
Model TBV (Formed Ends), TBVV (Vertical Ends)
Revit Family RFA   |   View on Autodesk Seek
Clear selection
  • Standard Rise Vault
  • Half-Round Vault
  • Quarter-Round Vault
  • Safety Considerations

Available Sizes

  • Vertical Ends (TBVV): 36″ to 123″, unlimited lengths. Also available in fall protection (TBVVIM) or with Lumira Aerogel filled multiwall polycarbonate panel (TBVVLA)
  • Vertical Ends – Structural (STBVV): 10′ to 16′, unlimited lengths (included in TBVV download files).
  • Formed Ends (TBV): 36″ to 75″, unlimited lengths. Also available with Lumira Aerogel filled multiwall polycarbonate panel (TBVLA)

Glazing Options

TBVV, STBVV, TBVVLA:

Outer – Acrylic, Impact Modified Acrylic, Monolithic or Multiwall Polycarbonate

  • Clear
  • Bronze
  • White
  • Satin Sky*

Inner – Acrylic, Impact Modified Acrylic, Monolithic or Multiwall Polycarbonate

  • Clear
  • White
  • Clear Multiwall, Lumira® Aerogel Filled (TBVVLA)

TBVVIM:

Outer – Impact Modified Acrylic

  • Clear
  • 2412 Bronze
  • White

Inner – Impact Modified Acrylic

  • Clear
  • White

TBV, TBVLA:

Outer – Acrylic or Impact Modified Acrylic

  • Clear
  • 2412 Bronze
  • White
  • Satin Sky*

Inner – Acrylic or Impact Modified Acrylic

  • Clear
  • White
  • Clear Multiwall, Lumira® Aerogel Filled (TBVLA)

*Impact modified only.

Half-round high-rise vaults are available in widths of 48″ to 123″ (vertical ends only). Structural models available in widths from 10′ to 16′. Unlimited lengths.

Glazing Options

HRVV:

Outer – Acrylic, Impact Modified Acrylic, Monolithic or Multiwall Polycarbonate

  • Clear
  • 2412 Bronze
  • White

Inner – Acrylic, Impact Modified Acrylic, Monolithic or Multiwall Polycarbonate

  • Clear
  • White

Available in 24″ to 75″ widths. Structural models available in widths from 75″ to 120″. Unlimited lengths.

Glazing Options

QRVV:

Outer – Acrylic, Impact Modified Acrylic, Monolithic or Multiwall Polycarbonate

  • Clear
  • 2412 Bronze
  • White

Inner – Acrylic, Impact Modified Acrylic, Monolithic or Multiwall Polycarbonate

  • Clear
  • White

Safety ConsiderationsWasco skylights are designed to withstand normal elements of the weather. They are not designed to withstand human impact or falling objects. These skylights should not be walked upon under any circumstances. The owner or designer should restrict access only to authorized personnel who have been adequately cautioned as to the location of the skylights and informed of the warning above, or said owner should provide protective guard rails or screens around the skylights.
